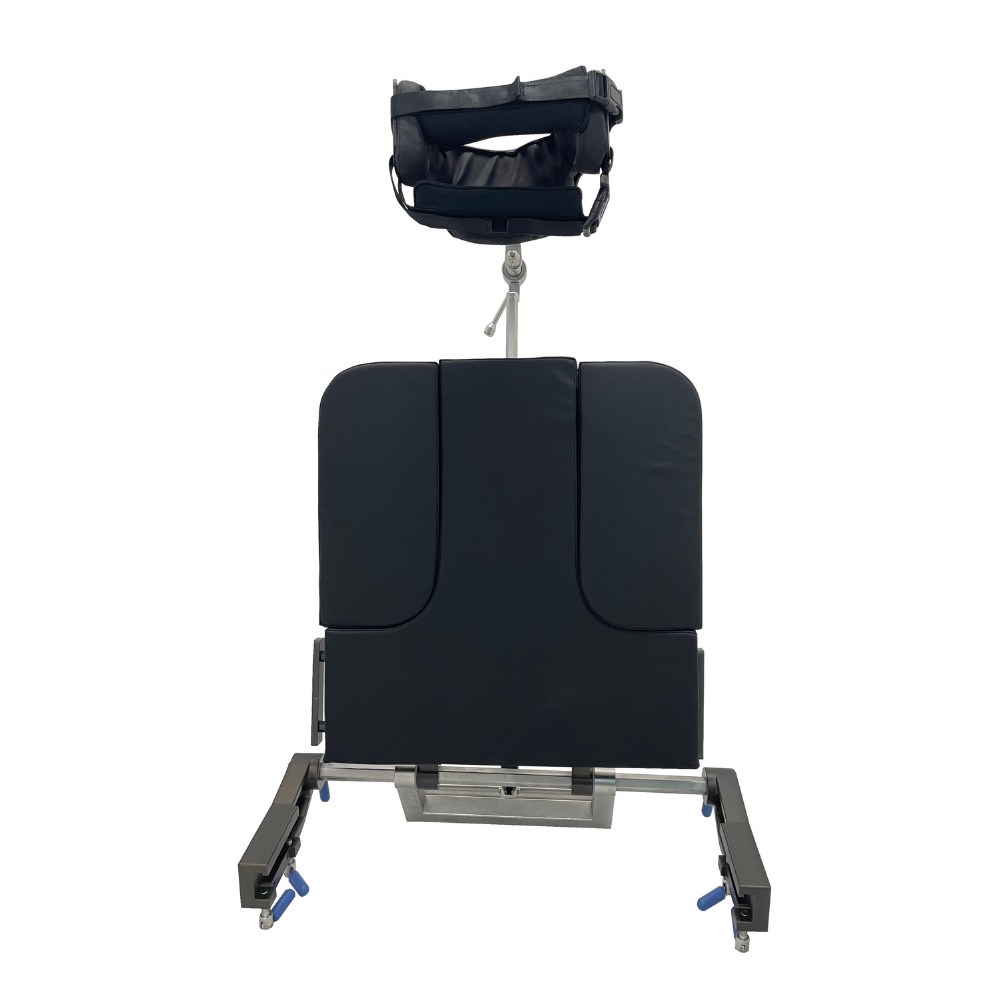

Beach Chair - Surgical Table Module for Shoulder Surgery

This Beach Chair Surgical Table Module is a specialized positioning system designed for optimal patient support during shoulder surgeries. Key applications include arthroscopic shoulder procedures, rotator cuff repairs, shoulder reconstructions, and other orthopedic interventions requiring elevated arm access and stable upper body positioning for enhanced surgical visibility and maneuverability. It features a robust frame with adjustable backrest and integrated headrest for precise alignment, constructed from 304 stainless steel and aluminum alloy for corrosion resistance and ease of use.

Categories: Web ID: 24319 SKU: 410.000.0086
  • For shoulder procedures in beach chair position
  • Rail options: 30 mm x 8 mm (1.18 in x 0.31 in) or 28.5 mm x 9.5 mm (1.12 in x 0.37 in)
  • Backrest angle range of -15° to +80°
  • Headrest extension of 0–320 mm (0–12.60 in) for customized patient positioning.
  • Overall dimensions are 520 mm x 580 mm (20.47 in x 22.83 in)
  • Suitable for operating tables with widths of 500–600 mm (19.69–23.62 in).
