EKG Machines

Intuitive, Interpretive, & Connective

QRS-12 EKG Machine

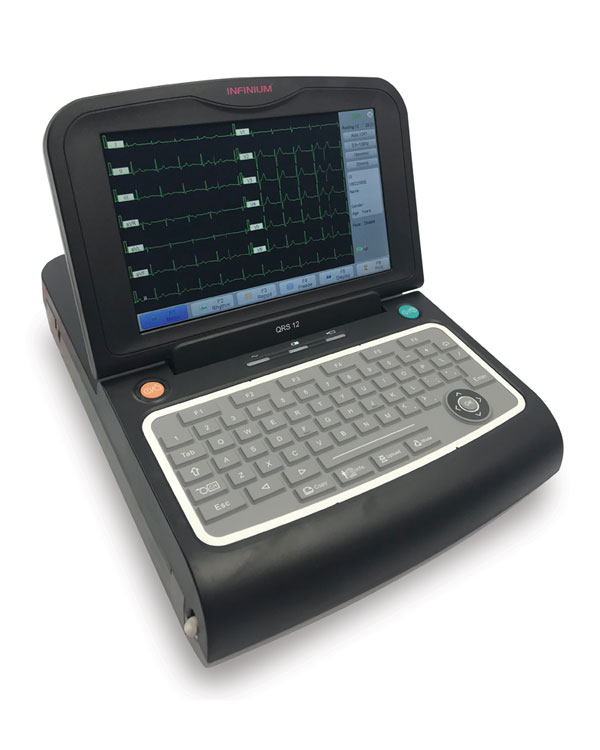

Infinium Medical EKG QRS-12.

Designed for a fast paced work environment, the portable Infinium QRS-12 EKG / ECG System offers an extremely simple and adaptable touch-screen user interface. Patient information along with vital sign settings can be quickly modified to meet the needs of a patient’s changing condition. The QRS-12 offers a high resolution 9 inch touch screen and alphanumeric keypad to optimize the speed of patient care. The user can therefore make quick and convenient analysis while having multiple print and data transfer options.

Unlike most EKG machines, the QRS-12 offers interpretation software as a standard feature.  The QRS-12 provides 2 “built-in” EKG references databases.

The QRS-12 offers several connective solutions to network and manage patient data on an electronic medical records platform or a HL7 information system. The QRS-12 EKGECG system offers Ethernet and RS232 connections with an open source communication protocol. Infinium offers 2 levels of networking and connectivity. The QRS-12 is HL7 and DICOM compliant. The HL7 network protocol will allow for all patient information and vital sign trends to be transferred and stored on a hospital information system. For non-HL7 medical facilities, there is the Infinium ECG manager software  which allows the transfer of all stored ECG files and patient data to a remote PC. The patient files can be very simply saved, stored, printed, and, transferred.

Infinium Medical EKG QRS-12.
Infinium Medical EKG QRS-12.
Infinium Medical EKG QRS-12.
Infinium Medical EKG QRS-12.
Portable EKG / ECG with Handle

Easy to Use

Feature Rich

Connected

Portable

EKG Exam - EKG Monitor

Infinium Medical

More Information

For more information on the CLEO capnography module download the brochure or request quote.

Features & Capabilities

QRS-12 EKG Features

Smart and portable design

9-inch high resolution TFT touch screen with adjustable angle, easy to view

Waterproof and full alphanumeric keyboard with shortcut keys.

Broad frequency response 0.05~250Hz for weaker signal recognition and capture, more suitable for pediatrics

Specific age and gender differential validity in CardioPro analysis program maximizes the accuracy of the ECG interpretation

Unique ECG acquisition module with 3 independent keys streamlines the whole workflow

ECG electrode placement diagram for lead connection guide and alarm

Up to 300 seconds frozen waveforms reviewable and recordable

Up to 300 seconds R-R analysis in 1 or 3 rhythms for easier in arrhythmia locating

Cabrera mode available

Support various file formats: XML, DICOM, JPG and PDF

Local storage for up to 1500 files

3 ways files storage: local memory, SD card, USB flash disk

ECG management software by LAN or WIFI (optional)

Accessories Optional Accessories
12 Lead Cable
ECG manager Software
Chest Electrodes
Mobile Cart
Limb Electrodes
Carry Bag
Paper roll
External Printer
Lithium Battery
Bar Code Scanner/Magnetic Card Reader
