Description
Product Summary

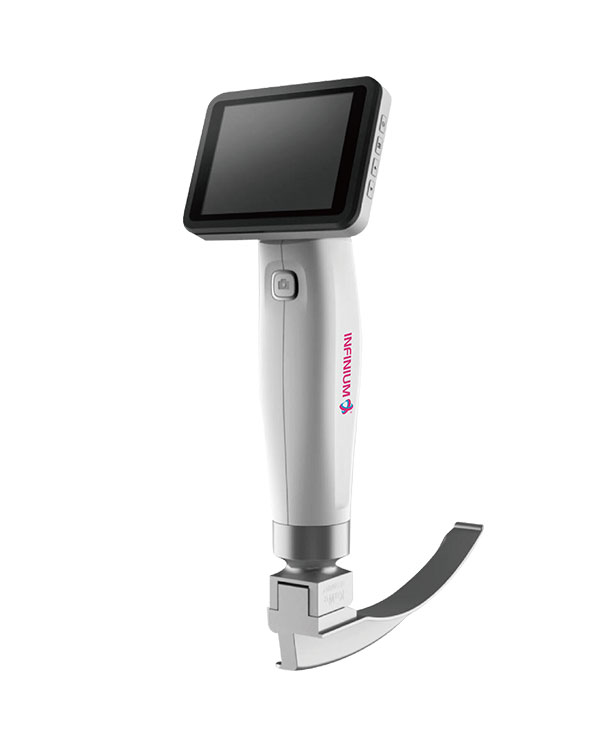

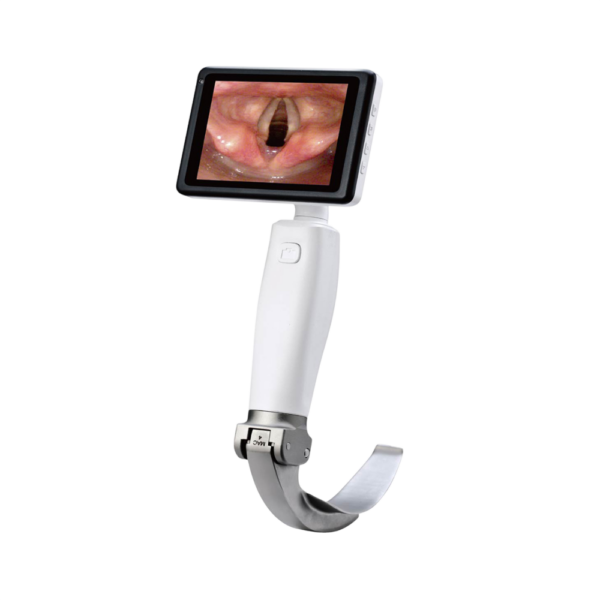

The Infinium ClearVue™ video laryngoscope adopts state-of-the-art imaging technology, pairing a 2.0-megapixel full-view camera with a 4-inch high-resolution monitor for exceptional glottic visualization. Built around a reusable blade platform, the ClearVue™ combines a rechargeable Li-ion battery, an anti-fog and anti-shatter HD screen, and a compact, ergonomic housing to support clinicians in achieving first-attempt intubation success while minimizing the risk of complications.

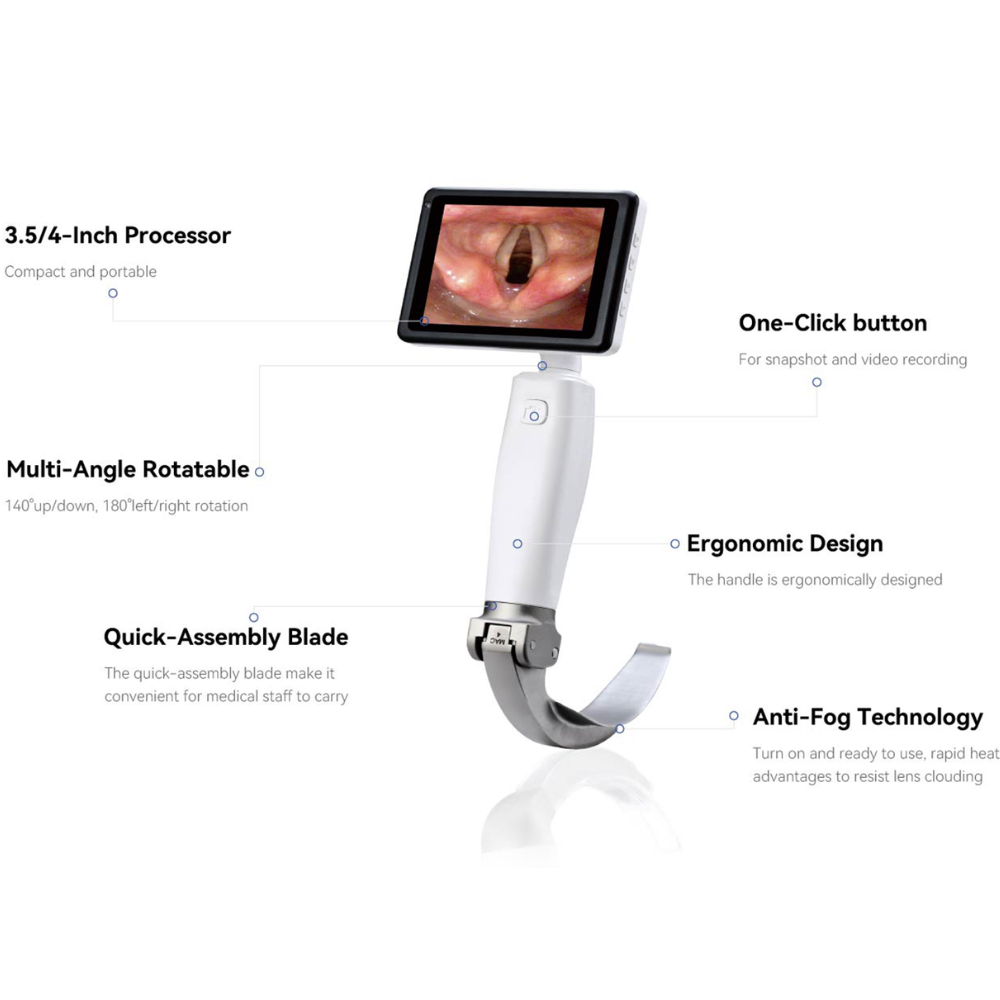

Key Features
The ClearVue™ platform is engineered around a high-resolution imaging chain and a rugged reusable blade housing, giving clinicians a clear, stable view of the airway throughout the intubation procedure.
- 2.0-megapixel full-view camera delivering high-resolution glottic visualization
- 4-inch high-resolution HD monitor for clear, real-time viewing
- Anti-fog, anti-shatter reinforced screen built for demanding clinical environments
- Rechargeable Li-ion battery for extended procedural use
- Compact, ergonomic design supporting first-attempt intubation success

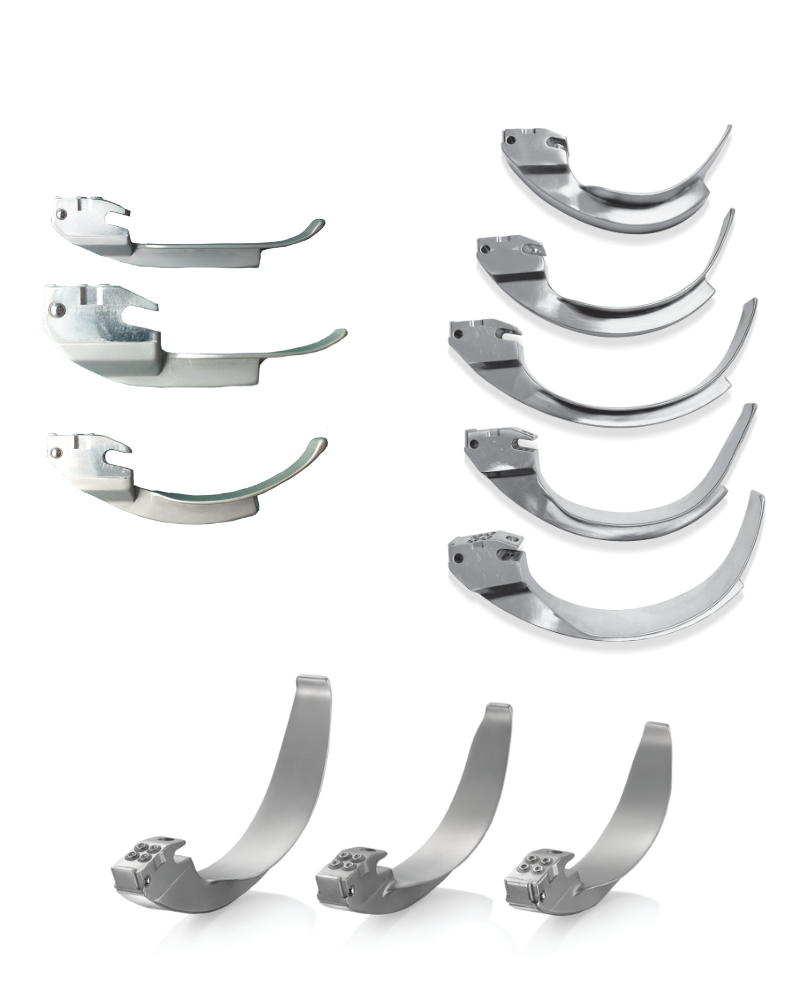

Comprehensive Blade Offering
- Macintosh blades size 1, 2, 3, 4, 5 available
- Macintosh curved "D" blades size 1, 2, 3, 4, 5 available
- Miller blades size 0, 1 available
- ClearVue comes standard with Macintosh size 2, 3, and 4 blades
Key Advantages
Compact and Innovative
- Lightweight – unit is less than 350g
- Quick installation and removal of blade
- Quick shot camera button for photo and video recording
- 4GB data storage (approx. 80 minutes of stored video)
- Optional HDMI output for remote display
Durable
- 1-year warranty
- Screen reinforced with anti-shatter protection
- Lightweight, long-lasting rechargeable Li-ion battery
- ClearVue reusable blade design with side-view compatibility
High-Definition
- 4-inch HD display
- Anti-fog lens
- 2.0-megapixel camera with video recording
Reusable Blade Platform Family
The ClearVue™ VL3R belongs to a broader video laryngoscope blade platform in which model designations indicate blade type and configuration. This naming structure helps clarify how the reusable blade design of the VL3R relates to other configurations within the same imaging platform.
| Designation | Configuration |
|---|---|
| VL3R / VL4R | Reusable blade configuration (the ClearVue platform featured here), available with size 3 or size 4 imager housings. |
| VL3D / VL4D | Disposable blade counterparts built on the same imaging platform. |
| VL4REX / VL4DEX | Extended reusable and disposable blade variants within the size-4 platform. |
| VL3S | Flexible, single-use video bronchoscope variant. |
| VL3H | Video stylet-type configuration. |
