Description
Product Summary

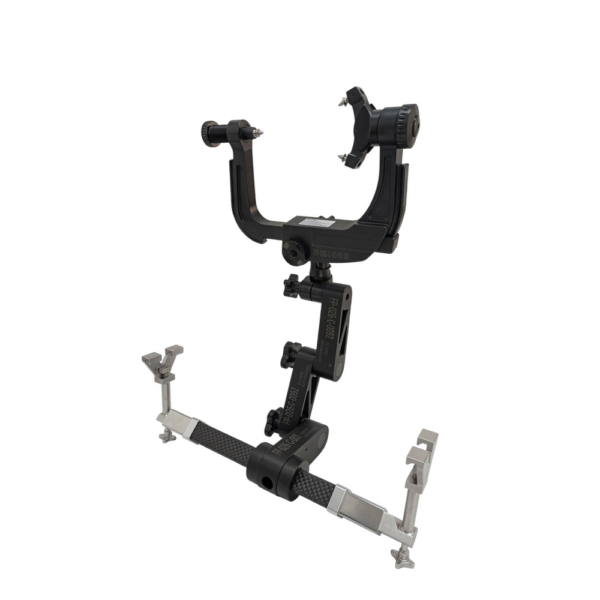

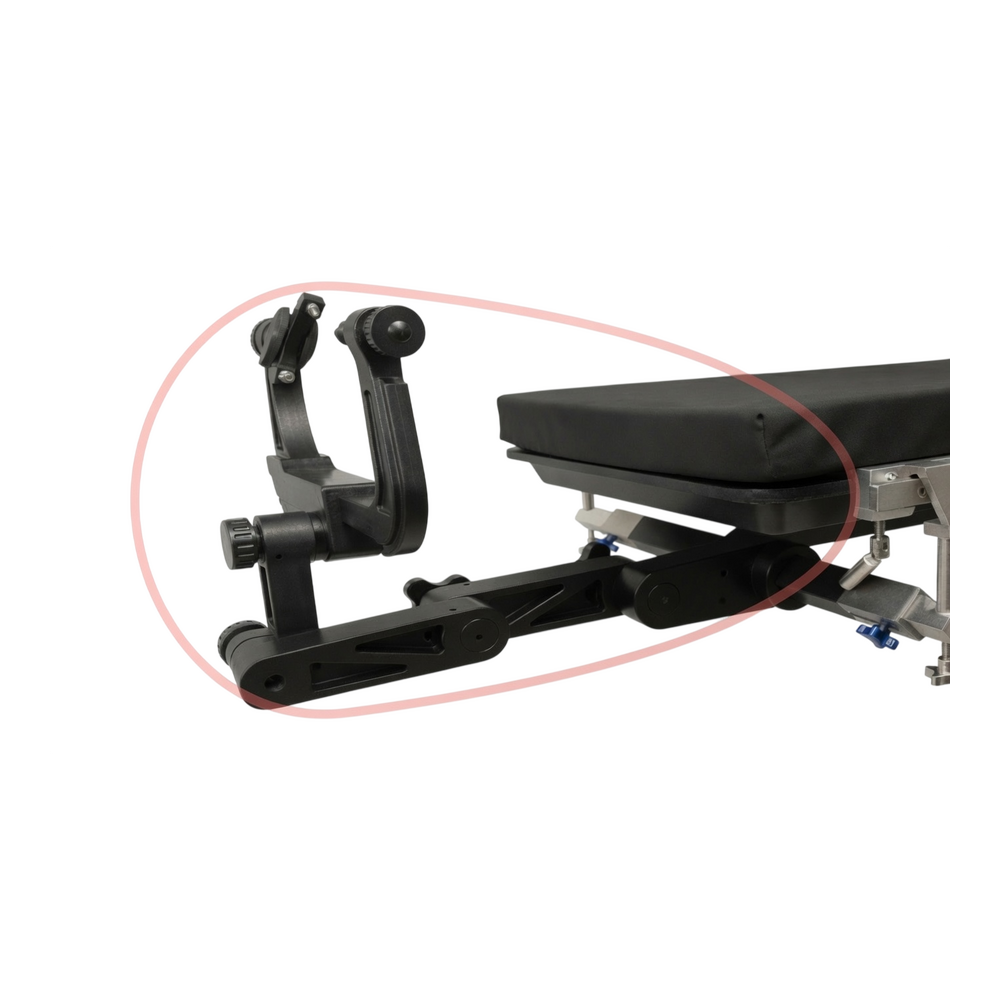

This radiolucent carbon fiber head frame system delivers full x-ray transparency for use with C-ARM, MRI, and other large imaging devices, making it well suited to both neurosurgery and orthopedic procedures. The three-pin skull clamp design mounts to standard operating table side rails at a working distance of 520–720 mm (approximately 20.5–28.3 in) between the rails and the table, extending reliable cranial fixation to tables that lack a dedicated head-frame interface.
Compatible with any brand of operating table and available in 520 mm and 720 mm frame sizes, the system integrates seamlessly into surgical suites equipped with DSA, large C-arm, O-arm, and MRI imaging, supporting cervical spine procedures in addition to cranial neurosurgery and orthopedic cases.
A bilateral 90° locking function allows the surgical team to fast-fix the pins with confidence, while titanium alloy head pins are available in adult and pediatric sizing. Optional reusable, x-ray lucent pins are built to withstand repeated high-pressure and high-temperature disinfection and sterilization cycles.
Key Features
Radiolucent Carbon Fiber Frame
Fully x-ray transparent construction for unobstructed imaging during procedures.
Multi-Modality Imaging Support
Compatible with DSA, large C-arm, O-arm, MRI, and other large imaging equipment.
Three-Pin Design
Purpose-built three-pin skull clamp configuration for neurosurgery, cervical spine, and orthopedic applications.
Bilateral 90° Locking
Fast-fix locking function on both sides secures pins quickly and reliably.
Titanium Alloy Pins
Durable titanium alloy head pins sized for both adult and pediatric patients.
Two Frame Sizes
Available in 520 mm and 720 mm frame sizes and compatible with any brand of operating table.
Key Advantages
Precision Fixation with Imaging Freedom
The carbon fiber frame keeps the surgical field clear for continuous imaging while the bilateral 90° locking function lets the team fast-fix pins without compromising stability. Single-side clamp pressure is adjustable from 0 to 80 lbs, giving surgeons precise control over fixation force for patients of varying age and skull structure.
Optional reusable, x-ray lucent pins are engineered to endure high-pressure and high-temperature disinfection and sterilization cycles, supporting consistent reprocessing without sacrificing durability or imaging clarity. Universal table compatibility and CE/ISO 13485 certification support straightforward integration into existing surgical infrastructure.
Feature List
- Radiolucent carbon fiber head frame construction
- X-ray compatible with C-ARM, MRI, and other large imaging devices
- Supports DSA and O-arm intraoperative imaging
- Three-pin design for neurosurgery, cervical spine, and orthopedic applications
- Rail-to-table distance of 520–720 mm (20.5–28.3 in)
- Available in 520 mm and 720 mm frame sizes
- Compatible with any brand of operating table
- Single-side clamp pressure adjustable from 0 to 80 lbs
- Bilateral 90° locking function for fast pin fixation
- Titanium alloy head pins for adult and pediatric patients
- Optional reusable, x-ray lucent pins for repeat sterilization
- High-pressure and high-temperature disinfection compatible
- Universal side-rail mounting adaptor for standard operating tables
- CE certified and ISO 13485 compliant
- Class I medical device classification
- OEM customization available
- 1-year warranty with online technical support
Medical Applications
Neurosurgery
Provides rigid cranial stabilization for a wide range of neurosurgical procedures requiring precise head positioning and unobstructed intraoperative imaging.
Cervical Spine Surgery
Secures the skull and cervical region during anterior and posterior cervical spine procedures, supporting surgeon access and imaging clarity.
Orthopedic Procedures
Suitable for orthopedic surgical cases requiring stable cranial fixation in conjunction with fluoroscopic or advanced imaging guidance.
Intraoperative Imaging-Guided Surgery
Full radiolucency supports use alongside DSA, C-arm, O-arm, and MRI systems without repositioning or removing the head clamp.
Standout Specifications
| Specification | Details |
|---|---|
| Rail-to-Table Distance | 520–720 mm (20.5–28.3 in) |
| Frame Sizes | 520 mm and 720 mm configurations available |
| Single-Side Clamp Pressure | 0–80 lbs, adjustable |
| Pin Configuration | Three-pin design for neurosurgery, cervical spine, and orthopedic use |
| Locking Mechanism | Bilateral 90° fast-fix locking |
| Pin Material | Titanium alloy, adult and pediatric sizing |
| Imaging Compatibility | DSA, C-ARM, O-arm, MRI, and other large imaging equipment |
| Table Compatibility | Universal — connects to any brand of operating table |
| Certifications | CE Certified, ISO 13485, Class I Medical Device |
| Warranty & Support | 1-year warranty with online technical support; OEM customization available |
Complete System Components

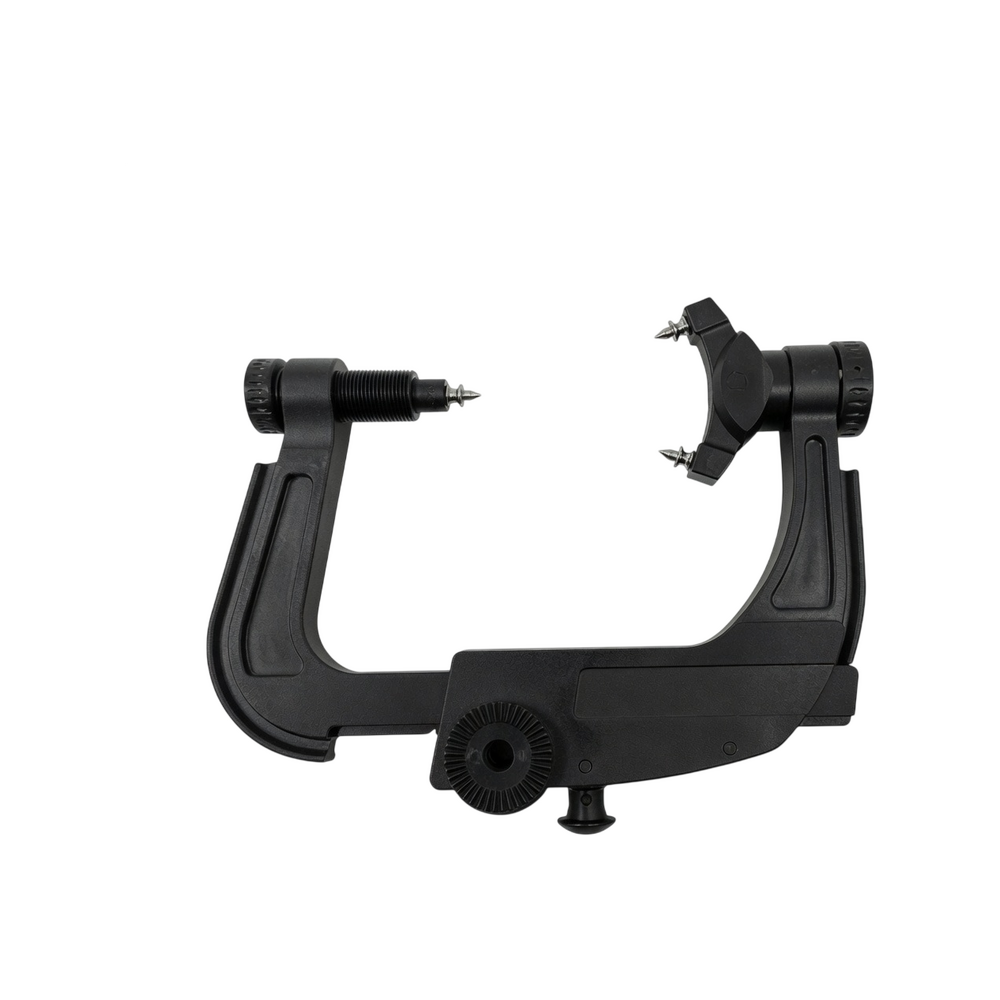

- Skull Clamp

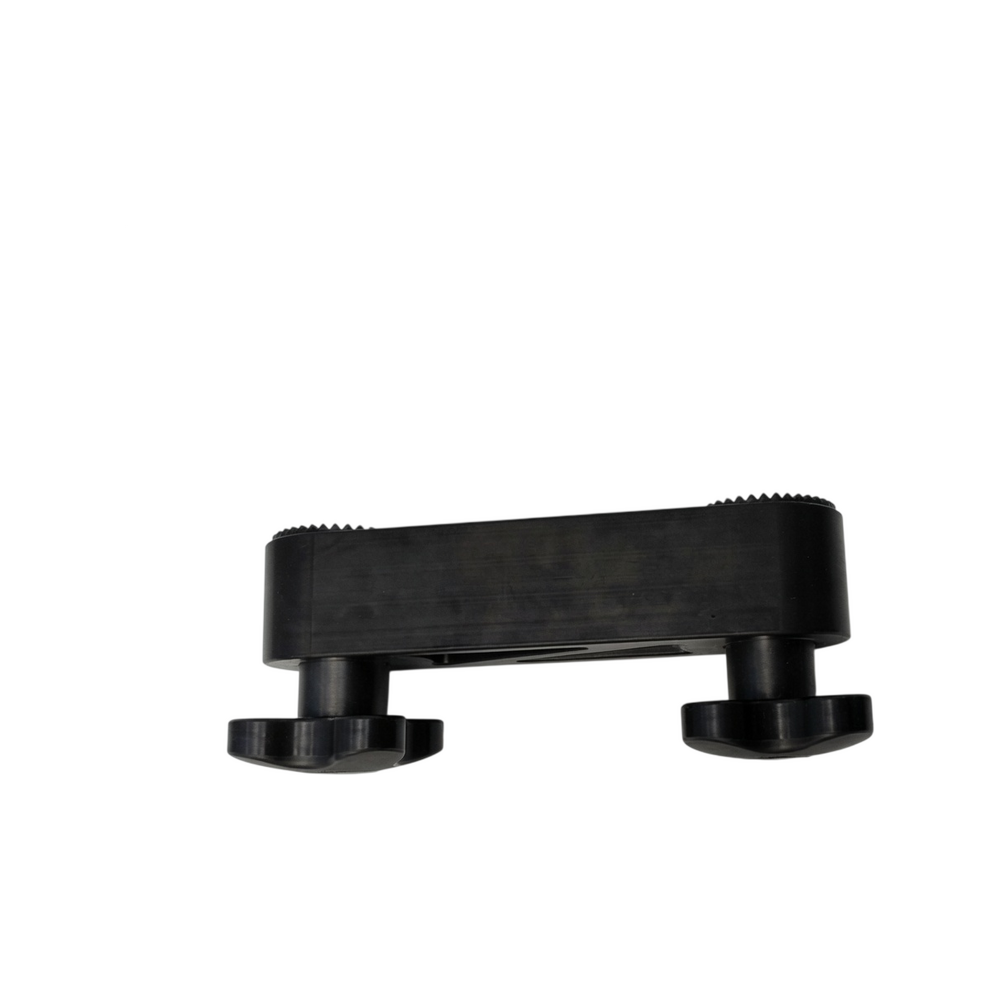

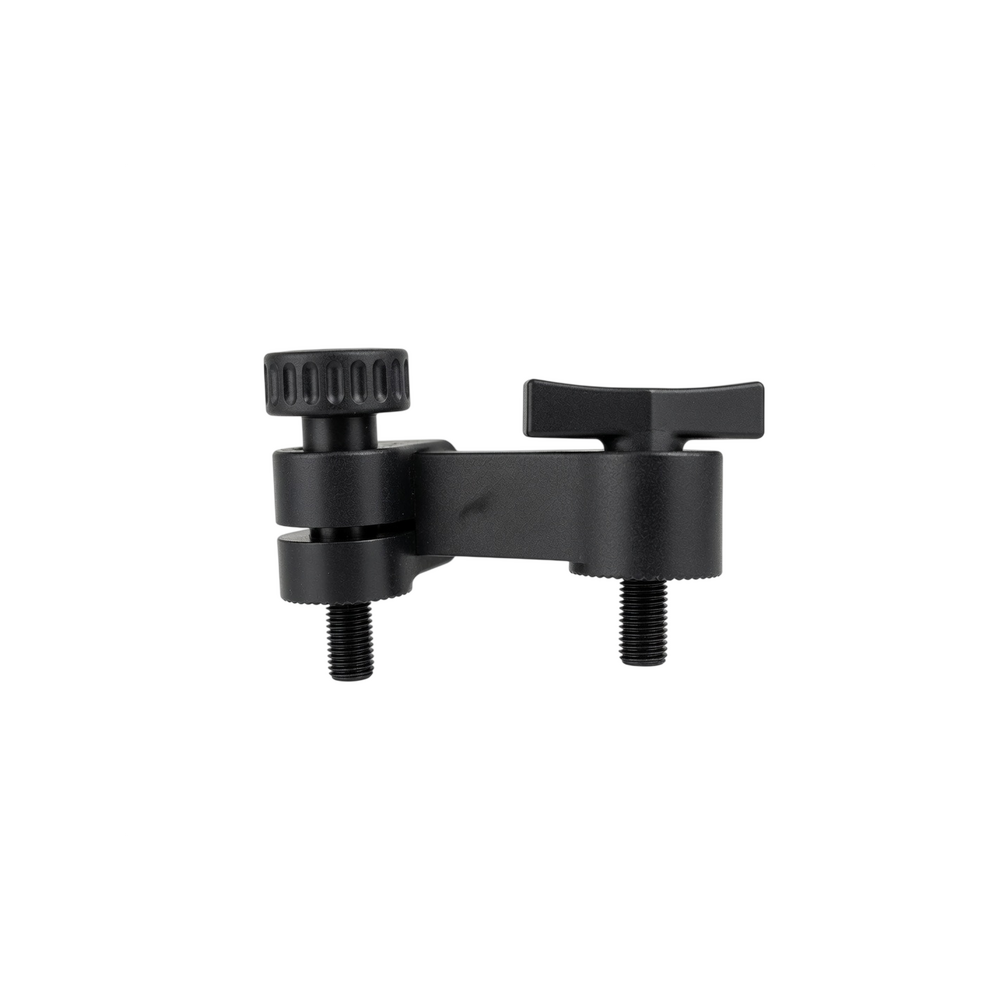

- Adaptor
- Double Connection Extension Arm

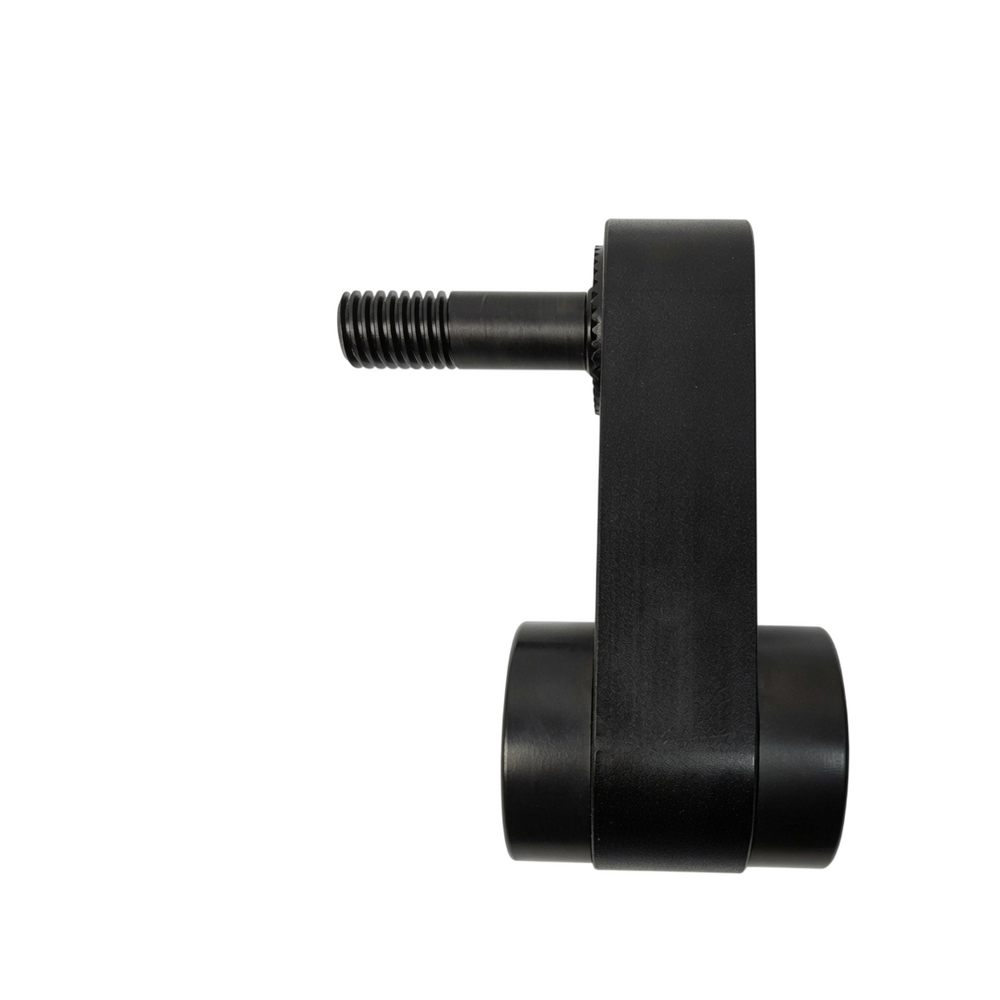

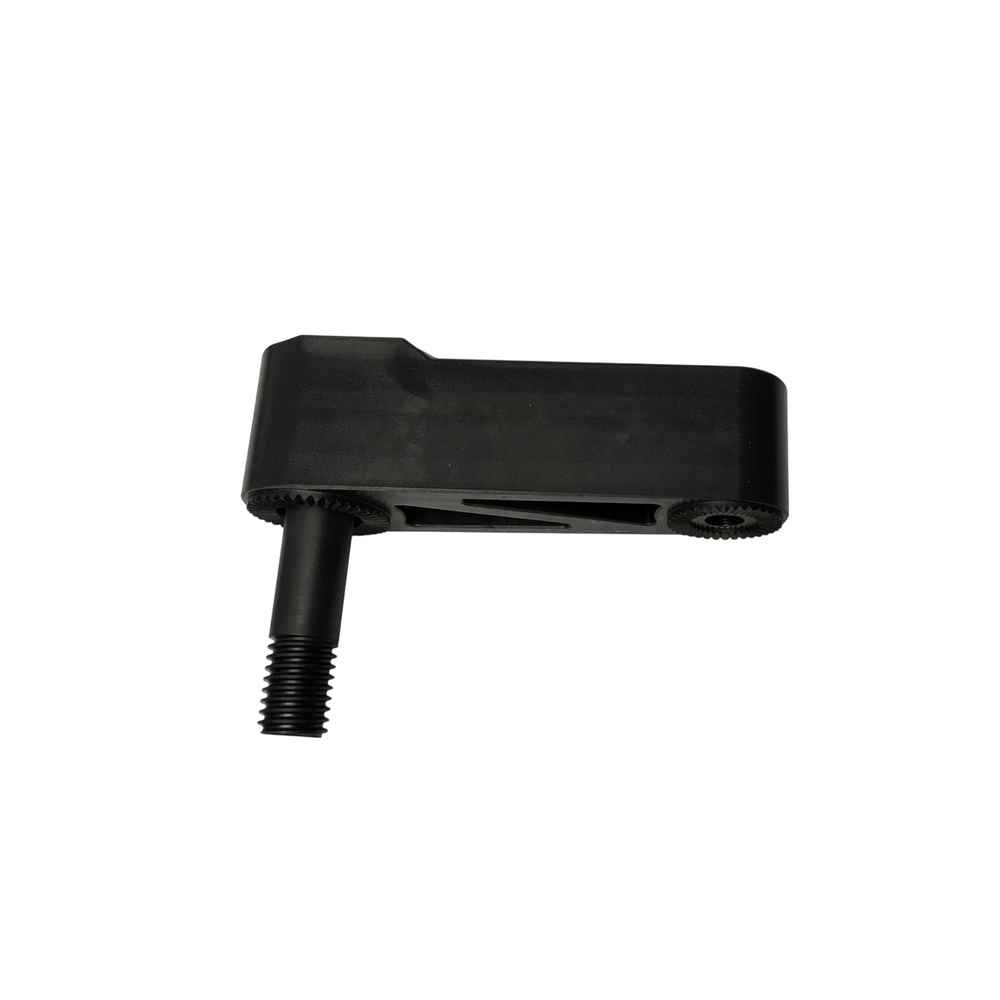

- Single Arm Extension
- Single Arm Gear Base

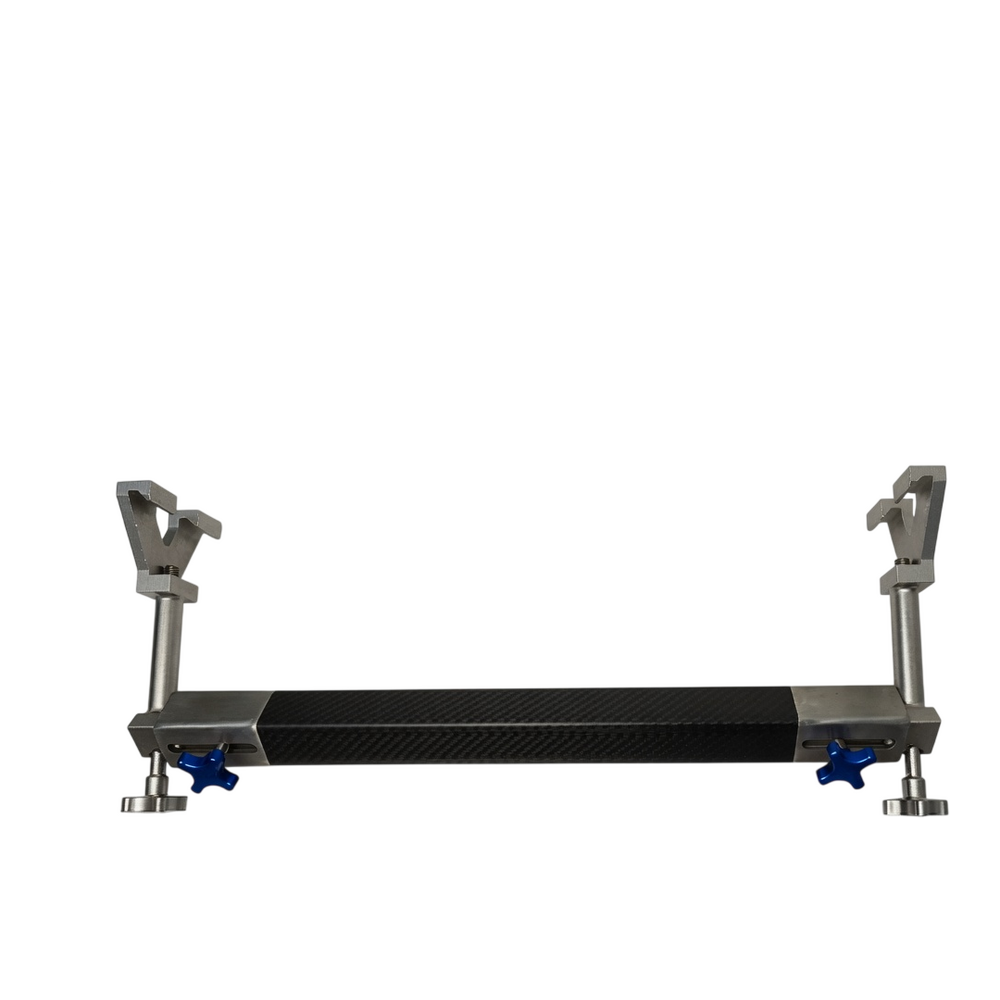

- Main Table Adapter Base
