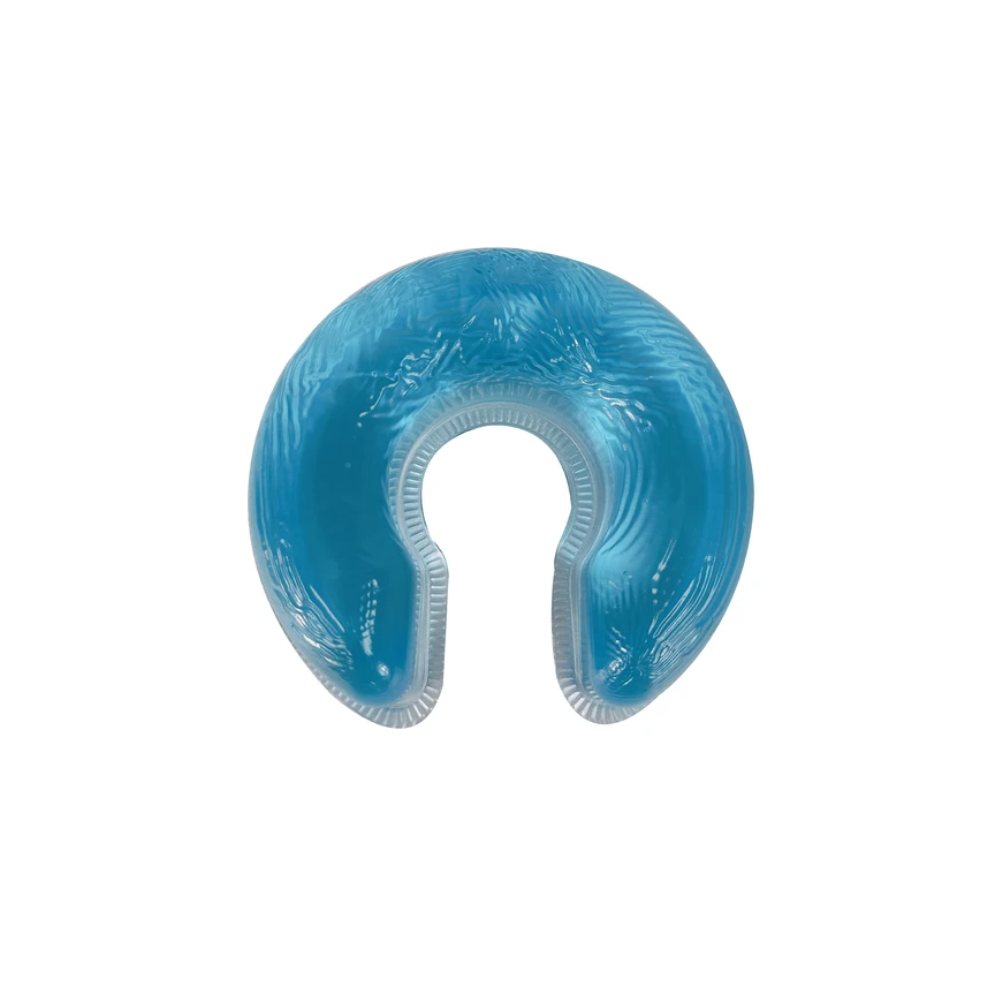

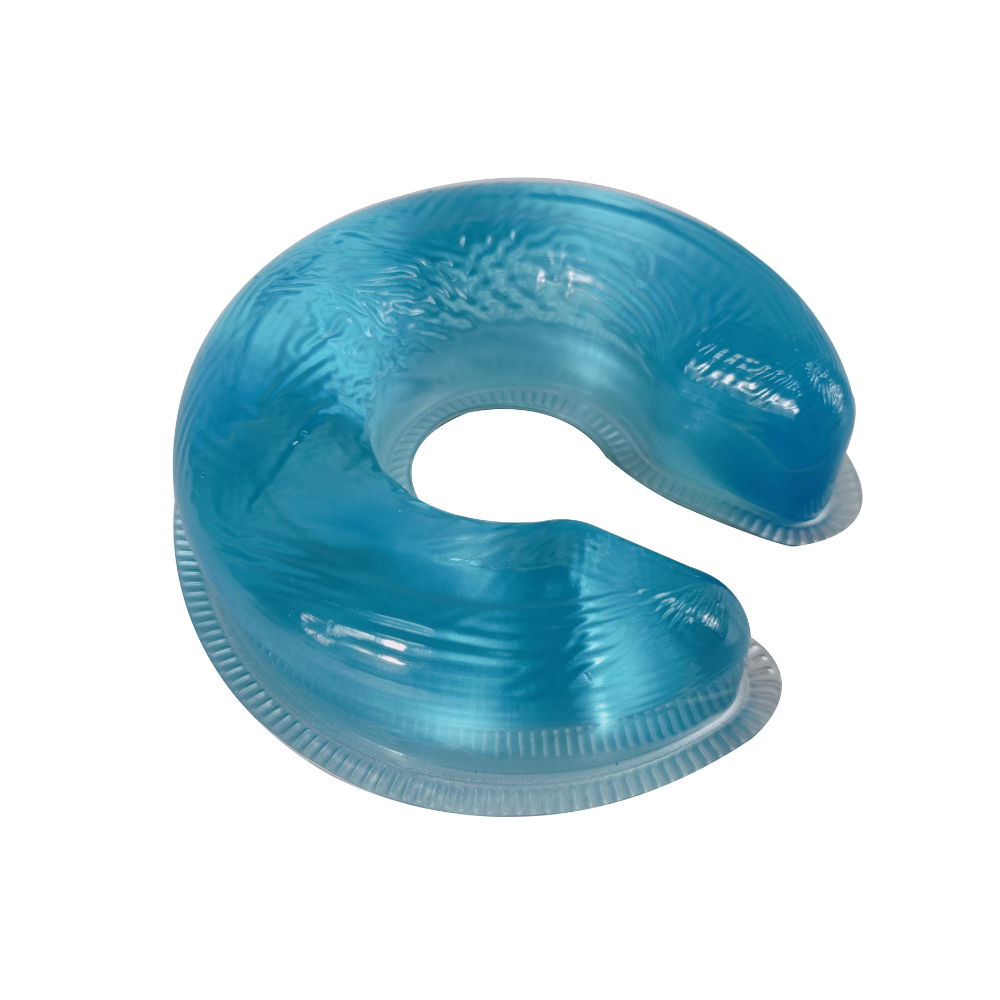

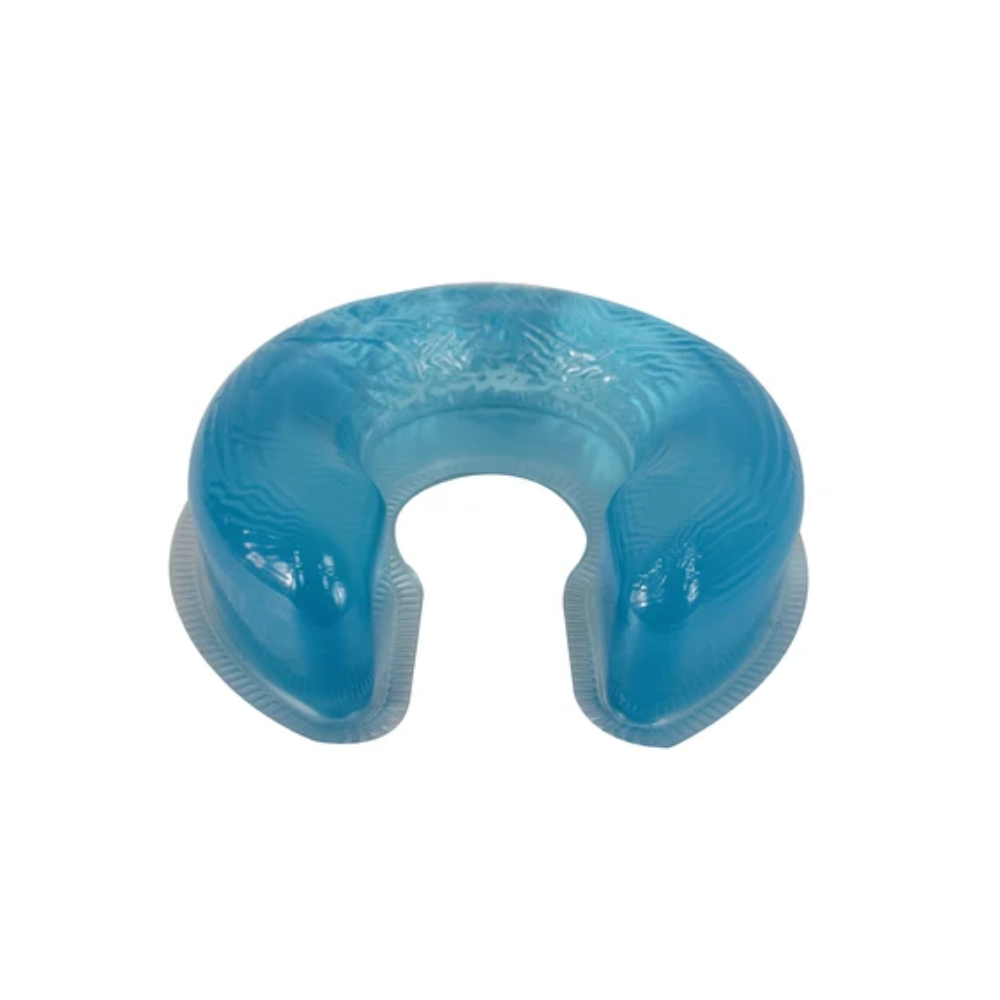

Elevate patient safety and comfort during prone positioning with our premium line of Gel Pad Headrest Prone - Open Horseshoe Style positioners. Crafted from high-quality, viscoelastic gel high polymer material with imported TPU glue, these open-ring (horseshoe) designs provide superior pressure redistribution, reducing the risk of ulcers, nerve damage, and facial compression in orthopedic, neurosurgical, and general procedures. The U-shaped open center ensures unobstructed airway access for intubation and monitoring, while the durable, flexible construction supports room-temperature use and easy sterilization. Compatible with universal operating tables, these headrests are essential for prone surgeries, offering customizable support for adults, pediatrics, and neonates. Thicknesses are 1.97 in and 2.95 in for adults, 1.38 in for pediatrics, and 1.18 in for neonates. All models feature customizable options (with or without stabilizing bottom base for added security).
Adult Models
(Outer Diameter: 7.87–8.66 in / 20–22 cm) For adult head support in prone spinal, orthopedic, or trauma surgeries. The larger inner opening (2.76–3.54 in / 7–9 cm) accommodates facial clearance while maintaining stability.
|
Model |
Outer Dia (in/cm) |
Inner Opening (in/cm) |
Thickness (in/cm) |
Key Features |
|---|---|---|---|---|
|
410.000.0090-0303 |
7.87 / 20 |
2.76 / 7 |
1.97 / 5 |
With bottom base; adult standard for balanced pressure relief. |
|
410.000.0090-0403 |
7.87 / 20 |
2.76 / 7 |
1.97 / 5 |
Without bottom; lightweight for quick setup. |
|
410.000.0090-0305 |
8.27 / 21 |
3.15 / 8 |
2.95 / 7.5 |
With bottom; high-profile for prolonged procedures. |
|
410.000.0090-0405 |
8.27 / 21 |
3.15 / 8 |
2.95 / 7.5 |
Without bottom; enhanced flexibility. |
|
410.000.0090-0307 |
8.66 / 22 |
3.54 / 9 |
2.95 / 7.5 |
With bottom; large adult for optimal fit. |
|
410.000.0090-0407 |
8.66 / 22 |
3.54 / 9 |
2.95 / 7.5 |
Without bottom; versatile for hybrid ORs. |
Pediatric Models
(Outer Diameter: 5.91 in / 15 cm) Sized for pediatric prone surgeries, with a smaller inner opening (2.36 in / 6 cm) and less bulk.
|
Model |
Outer Dia (in/cm) |
Inner Opening (in/cm) |
Thickness (in/cm) |
Key Features |
|---|---|---|---|---|
|
410.000.0090-0310 |
5.91 / 15 |
2.36 / 6 |
1.38 / 3.5 |
For kids, with bottom; gentle contouring. |
|
410.000.0090-0410 |
5.91 / 15 |
2.36 / 6 |
1.38 / 3.5 |
For kids, without bottom; portable option. |
Neonatal Models
(Outer Diameter: 4.33 in / 11 cm) Compact design for neonatal prone procedures, with a snug inner opening (1.97 in / 5 cm).
|
Model |
Outer Dia (in/cm) |
Inner Opening (in/cm) |
Thickness (in/cm) |
Key Features |
|---|---|---|---|---|
|
410.000.0090-0401 |
4.33 / 11 |
1.97 / 5 |
1.18 / 3 |
Without bottom; ultra-low profile for neonates. |
Quality Standards
These Gel Pad Headrest Prone - Open Horseshoe Style products meet CE and ISO 13485 standards.
