COMING SOON! – Infinium CLEO2 Patient Monitor

Web ID: 25357

COMING SOON! – Infinium CLEO2 Patient Monitor

The Infinium CLEO2 Patient Monitor offers versatile 10-inch flat touchscreen vital signs monitoring for clinical efficiency in hospitals, surgery centers, and medical practices.

Available parameters include SpO2, NIBP, optional EtCO2, temperature, spot temp, and pulse measurements. The CLEO2 seamlessly switches from Patient Monitoring mode to Spot Check mode and also has options for flexible networking, data transmission, and printing to enhance patient care workflows.

Category:

Share This Item :

Description

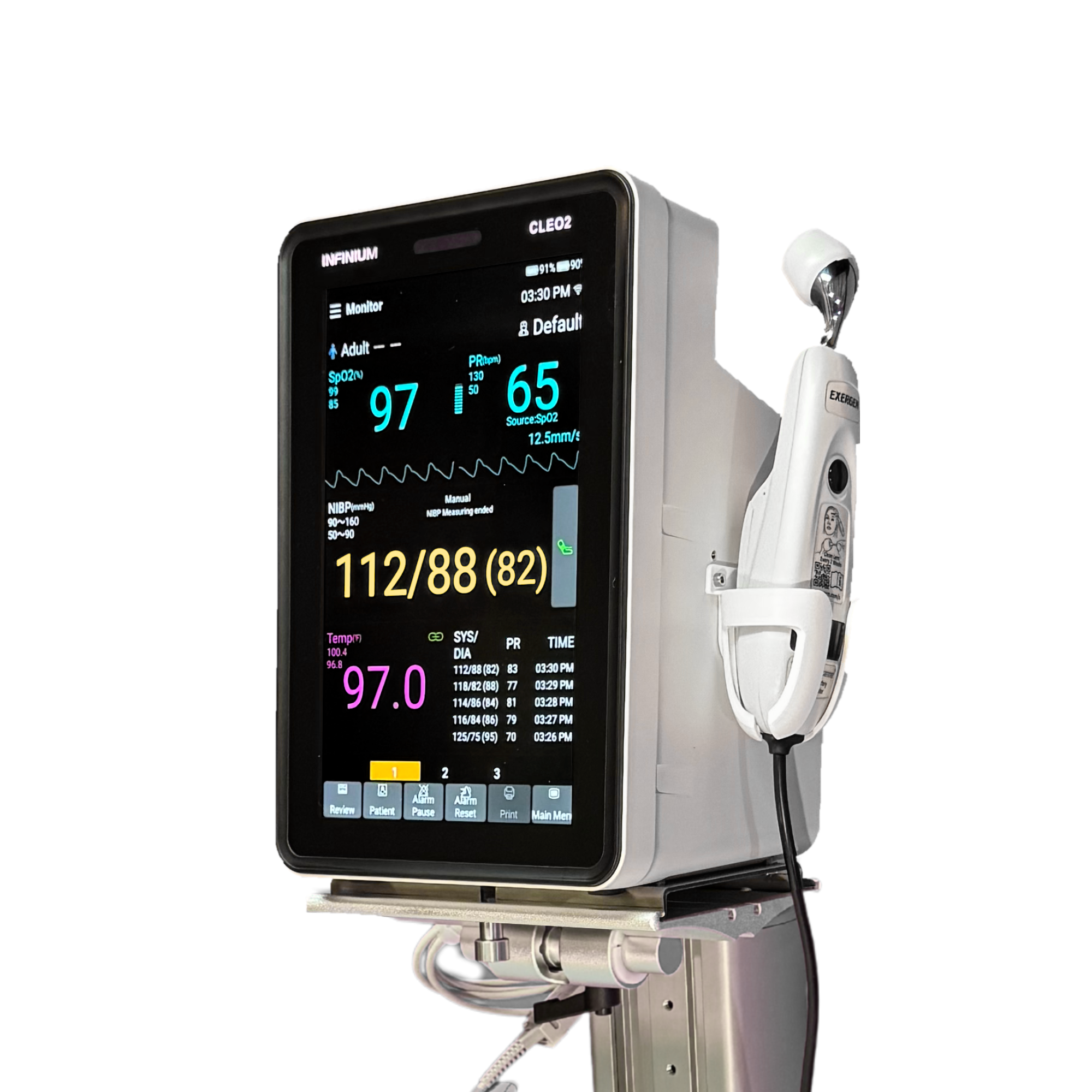

Infinium CLEO2 Patient Monitor

The Infinium CLEO2 Patient Monitor is a compact and portable vital signs monitoring system designed to deliver reliable performance in diverse medical environments. Equipped with a 10.1-inch high-resolution touchscreen, it provides accurate measurements of essential parameters including SpO2, pulse rate, non-invasive blood pressure, and optional end-tidal CO2 and temperature. This device supports both continuous monitoring and spot-check modes, making it an essential tool for healthcare professionals seeking efficient, adaptable solutions in hospitals, clinics, and ambulatory settings. Its durable construction and wireless connectivity options ensure seamless integration into clinical workflows, supporting informed decision-making and improved patient outcomes.

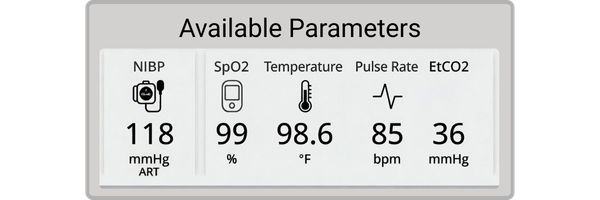

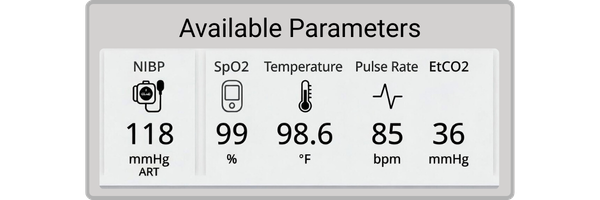

Infinium CLEO2 Parameters
Infinium CLEO2 Feature Icons

Key Advantages

Healthcare providers appreciate the CLEO2's flexibility in adapting to various clinical needs, from bedside monitoring to patient transport, thanks to its portable design and extended battery life. The system's interoperability with HL7 protocols facilitates bidirectional communication with electronic medical records, minimizing errors and streamlining data management. Customizable early warning scoring systems like MEWS and NEWS enable rapid patient assessments, enhancing team efficiency in fast-paced environments such as intensive care units or emergency departments. Additionally, its robust build with IPX2 water protection ensures reliability in demanding clinical conditions, while optional attachments like barcode scanners further optimize workflows for medical professionals.

Infinium CLEO2 Patient Monitor with Doctor

Portable design with optional accessories for enhanced workflow

Standout Features

Core Monitoring Capabilities

  • 10.1-inch high-resolution, multi-touch capacitive touchscreen for intuitive navigation
  • Operation modes including continuous monitoring and spot check for versatile clinical applications
  • SpO2 technology options with Infinium or Nellcor sensors, offering accuracy of ±2% to ±3% depending on conditions
  • NIBP measurement in manual, automatic, average, and STAT modes with oscillometric method for adult, pediatric, and neonate patients

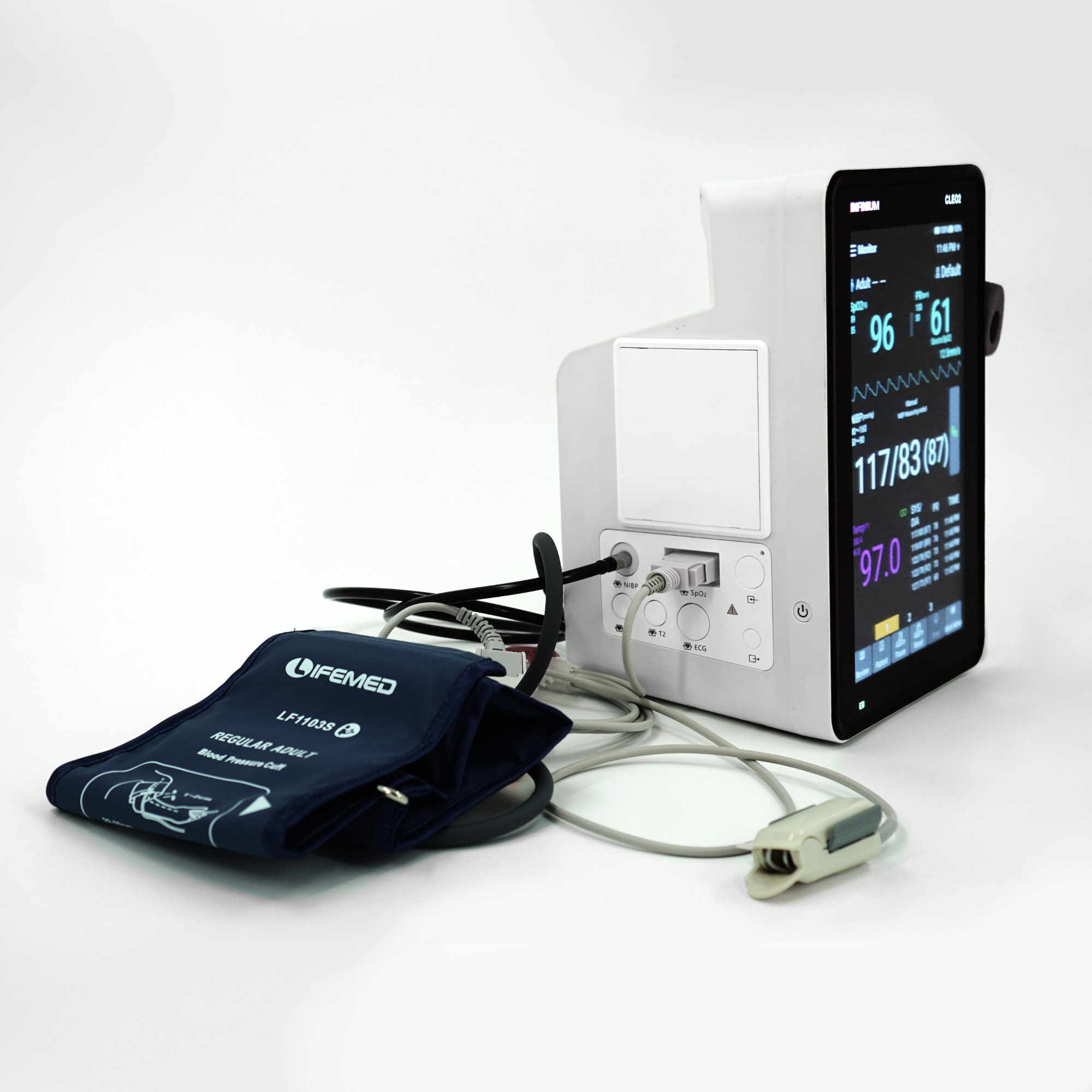

Infinium CLEO2 with Accessories

Reliable vital signs tracking in real-time

Advanced Options & Integration

  • Optional integrated sidestream EtCO2 for measurements of EtCO2 and awRR with waveform display, featuring infrared absorption technology
  • Early warning scoring systems such as MEWS and NEWS, with customizable options for clinical decision support
  • Access to up to 120 hours of patient trend data with up to 86,400 historical NIBP records
  • Wired or wireless networking with bi-directional HL7 communication for HIS/EMR integration
  • Support for attachments like barcode scanners, keyboards, or mice to enhance workflow
  • Flexible Mounting: Rolling stand, wall mount, and pole mount options available.
  • Optional infrared temperature measurement with high accuracy using Infinium or Exergen sensors
  • Optional integrated thermal printer for parameters and waveforms, supporting 1, 2, or 3 channels

Reliability & Connectivity

  • Compact design with IPX2 water protection and durable construction for clinical reliability
  • Rechargeable lithium batteries providing up to 8 hours runtime with two batteries
  • Wi-Fi standards IEEE 802.11b/g/n for wireless connectivity

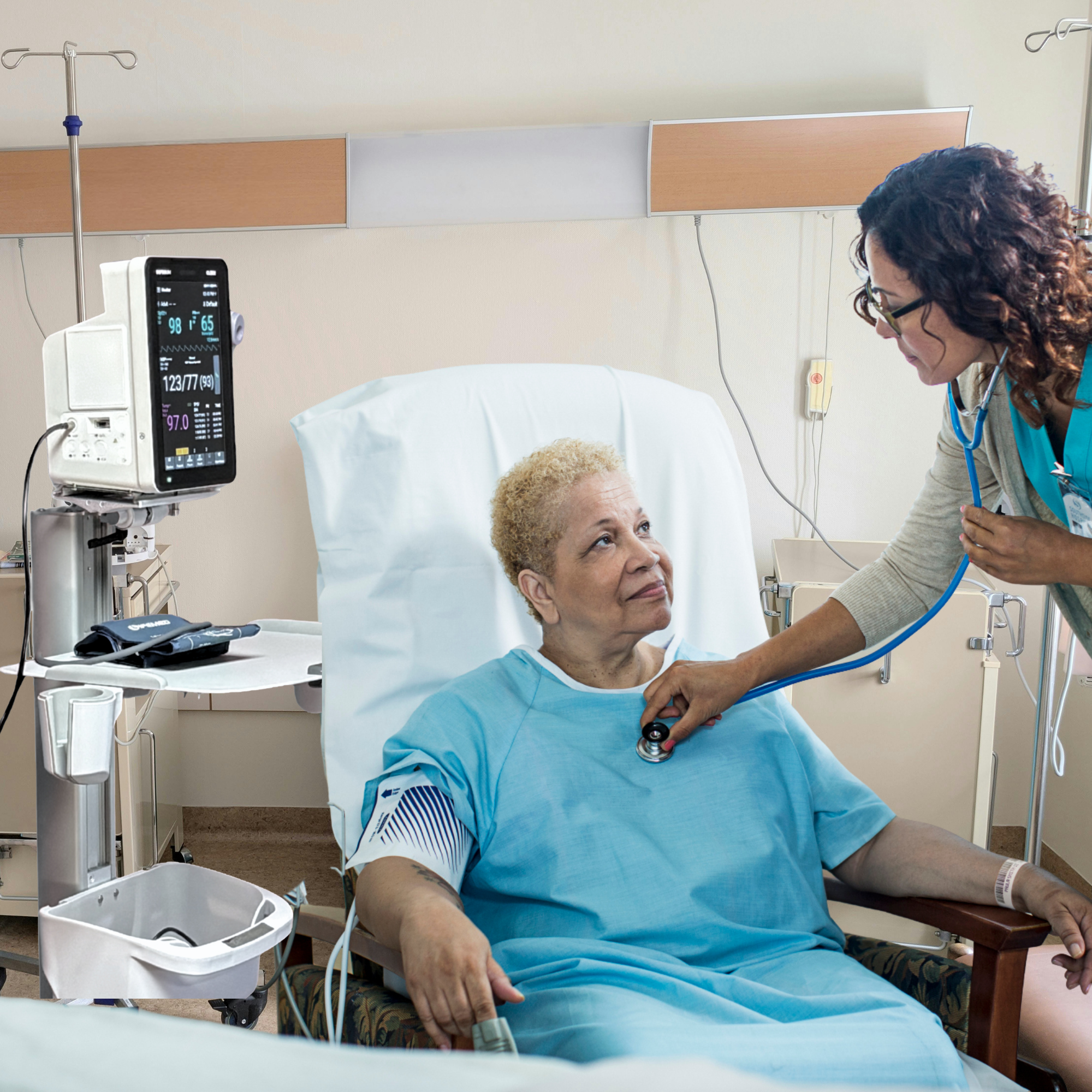

Infinium CLEO2 on Patient

Seamless integration in clinical settings

Medical Applications

In hospital intensive care units and emergency departments, the CLEO2 excels in continuous bedside monitoring, allowing medical professionals to track vital signs like SpO2, blood pressure, and optional EtCO2 for critically ill patients, facilitating timely interventions. Surgery centers utilize its spot-check mode for pre- and post-operative assessments, ensuring quick detection of respiratory or hemodynamic changes during procedures. In outpatient clinics and medical practices, it supports routine evaluations for conditions such as COPD or asthma, with optional temperature and EtCO2 features aiding comprehensive respiratory assessments. Its networking capabilities enable seamless data integration into electronic health records, making it ideal for ambulatory care where mobility and efficiency are key to delivering high-quality patient care.

CLEO2 in Pediatric Care

Ideal for Outpatient, ICU, ED, and Private Practice. Adult & pediatric patient ready.

ParameterValue (Imperial)Value (Metric)
Dimensions7.87" (W) x 10.83" (H) x 6.50" (D)200 mm (W) x 275 mm (H) x 165 mm (D)
Weight (mainframe, without accessories)≤7.17 lbs≤3.250 kg
Sound Volume6 levels (OFF, 1-5; default 2)
SpeakerIEC 60601-1-8 Alarm sounds (45-85 dB), button sounds, pulse sounds; multi-level volume
Screen10.1-inch TFT-LCD, 1280 x 800 pixels at 60 Hz (24-bit colors), multi-touch capacitive touchscreen
Alarm Output Sound Pressure40 dB(A) to 85 dB(A) within 1 meter
Electrical ProtectionClass I, with internal power. Type CF defibrillation proof for SpO2, NIBP, EtCO2
Communication PortsEthernet (1000M), 2x USB 2.0, USB Type C; Equipotential, Nurse Call
Water ProtectionIPX2 (protection against vertically falling water drops when enclosure tilted up to 15°)
EthernetIPv4, DHCP/Static IP (default DHCP)
Operating Temperature41 °F to 104 °F5 °C to 40 °C
Storage Temperature-4 °F to 131 °F-20 °C to 55 °C
Operating Humidity15% to 95%
Storage Humidity10% to 95%
Barometric Pressure600 mmHg to 788 mmHg80 kPa to 105 kPa
Voltage100 to 240 V
Current1.5 to 0.5 A
Frequency50/60 Hz
Internal Storage8 GB (usable 3 GB)
External DC Power Interface1 (11.1 V, 5.2 A; requires Class I, IEC 60601-1 certified, 2MOPP adapter)
BatteryRechargeable lithium, 11.1 V DC, 5200 mAh x 2
Battery Dimensions5.7" x 2.5" x 0.85"145 mm x 64 mm x 21.5 mm
Battery Weight0.75 lbs340 g
Brightness6 levels (0-5; default 3; night mode 0)
Battery Run Time≥ 8 hours (two batteries, new fully charged, 77 °F, normal conditions); ≥ 4 hours (one battery)≥ 8 hours (two batteries, new fully charged, 25 °C, normal conditions); ≥ 4 hours (one battery)
Battery Charge Time (OFF)0-90%: < 4 hours; 0-100%: < 5 hours
Battery Charge Time (ON)0-90%: < 7 hours; 0-100%: < 10 hours
Battery Shutdown Delay≥ 15 minutes (from first low battery alarm)
Thermal PrinterThermal dot array, 2.36" (60 mm), 25 mm/s, 1, 2, or 3 channelsThermal dot array, 60 mm, 25 mm/s, 1, 2, or 3 channels
Physiological ParametersSpO2, PR, NIBP-SYS/DIA, EtCO2, awRR, Temp
NIBP ModesManual, Average, Auto (2-240 min intervals), STAT (5 cycles)
NIBP Measurement TypesOscillometry - Adult, Pediatric, Neonate
NIBP Resolution1 mmHg
NIBP Defib Recovery< 5 s
NIBP Max Time180 s (Adult/Ped), 90 s (Neonate)
NIBP Historical RecordsUp to 86,400
NIBP Initial Inflation (Adult)80-240 mmHg, default 180
NIBP Initial Inflation (Ped)80-240, default 140
NIBP Initial Inflation (Neo)60-120, default 100
NIBP Static Pressure0-300 mmHg, ±3 mmHg
NIBP Dynamic Pressure Ranges (Adult)SYS 40-270/DIA 10-210 mmHg
NIBP Dynamic Pressure Ranges (Ped)SYS 40-230/DIA 10-150 mmHg
NIBP Dynamic Pressure Ranges (Neo)SYS 40-135/DIA 10-95 mmHg
NIBP Dynamic AccuracyMax mean error ±5 mmHg; max std dev 8 mmHg
NIBP Overpressure Protection297±3 mmHg (Adult/Ped), 147±3 mmHg (Neo)
NIBP PR Range40-240 bpm
NIBP PR Accuracy±3 bpm or 2%, greater
SpO2 Sweep Speed12.5 mm/s, 25.0 mm/s
SpO2 Defib Recovery<5 s
SpO2 Measurement Range0%-100%
SpO2 Alarm Response≤12 s
SpO2 ModulesInfinium, Nellcor
SpO2 Resolution1% (Infinium/Nellcor)
SpO2 Accuracy (70-100%)Infinium: ±3% (with motion), ±2% (no motion); Nellcor: ±2% (Adult/Ped), ±3% (Neonate)
SpO2 Response Time≤30 s (Infinium/Nellcor); refresh 1 s
SpO2 Low Perfusion0.3-20% (Infinium)
PR (from SpO2) Range30-250 bpm (Infinium), 20-300 bpm (Nellcor)
PR Resolution1 bpm
PR AccuracyInfinium: ±2 bpm (no motion), ±3 bpm (motion); Nellcor: ±3 bpm (20-250 bpm)
Temp FeaturesInfrared method; Response time: 0.5s; Resolution: 0.1°C (0.2 °F); Units: °C/°F; Comm: USB
Temp SensorsInfinium HTD8808C (93.2 °F to 109.2 °F, accuracy ±0.4-0.5 °F); Exergen TAT-5000S (60.8 °F to 109.4 °F, accuracy ±0.2 °F)Infinium HTD8808C (34.0 °C to 42.9 °C, accuracy ±0.2-0.3 °C); Exergen TAT-5000S (16.0 °C to 43.0 °C, accuracy ±0.1 °C)
EtCO2 FeaturesInfrared absorption; Warm up: 10s; Rise time: ≤500 ms; Response: ≤8 s; Defib recovery: <5 s; Flow Rate: 75 ml/min (±15% or ±15 ml/min, greater); Range 0-150 mmHg (0-20%, 0-20 kPa)
EtCO2 Accuracy0-40: ±2 mmHg; 41-76: ±5%; 77-99: ±10%; 100-150: ±(3 mmHg +8%) - 1mmHg resolution
awRR Range0-150 rpm
awRR Accuracy±1 rpm
awRR Resolution1 rpm
Wi-Fi StandardsIEEE 802.11b/g/n (2.4G)
Wi-Fi Frequency2412-2462 MHz (HT20); 2422-2452 MHz (HT40)
Wi-Fi ModulationDSSS (802.11b), OFDM (802.11g/n)
Wi-Fi Radiation Power<20 dBm (average), <30 dBm (peak)

Recommended Accessories

  • Rechargeable Lithium Battery: Standard configuration includes one battery for up to 4 hours operation; expandable to two batteries for up to 8 hours
  • Adult Accessory Kit: Includes SPO2 Finger Sensor and NIBP Cuff, provided as standard
  • Power Cord: Included for standard power supply
  • Infrared Temperature Module: Optional for highly accurate temperature measurement using Infinium or Exergen sensors
  • Integrated Thermal Printer: Optional for printing parameters and waveforms, 60mm, up to 3 channels
  • Rolling Stand: Optional for enhanced mobility in clinical settings
  • Barcode Scanner: Optional to enhance workflow by quickly entering patient information
  • Keyboard: Optional for additional input options
  • Mouse: Optional for improved navigation and control
