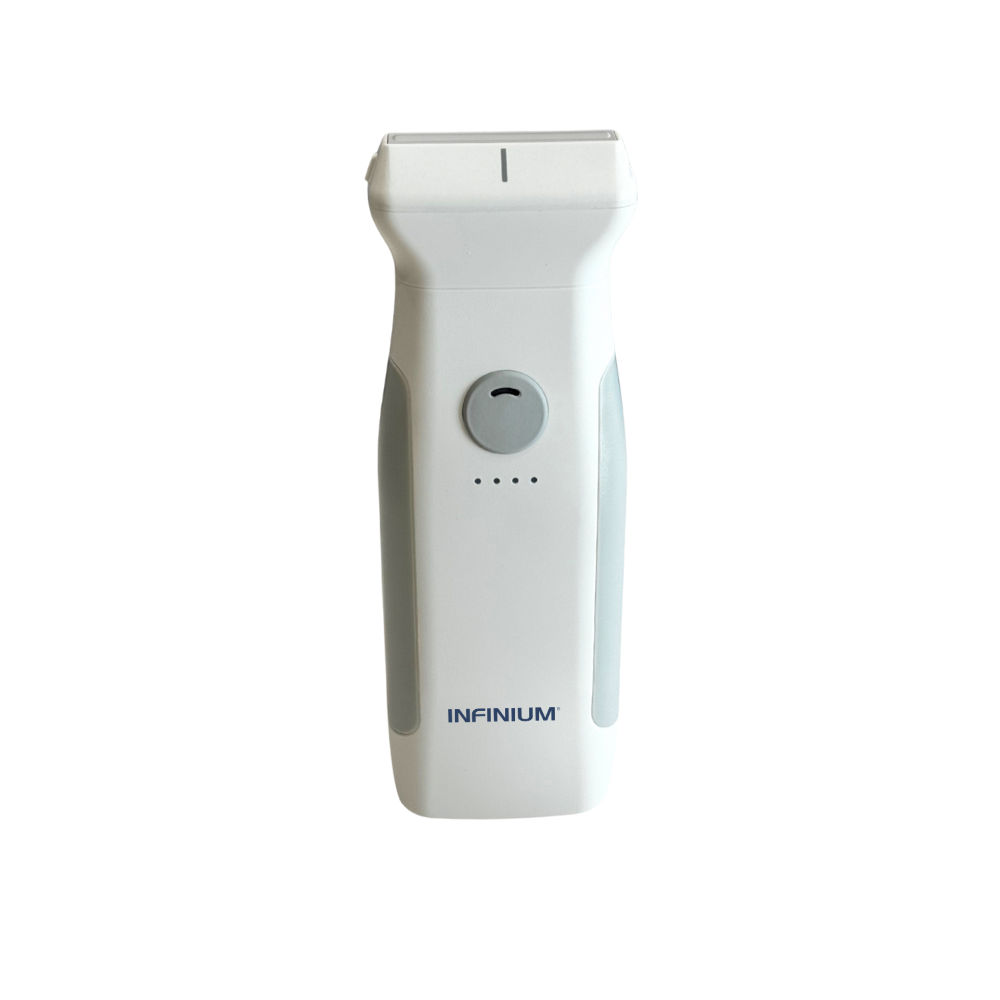

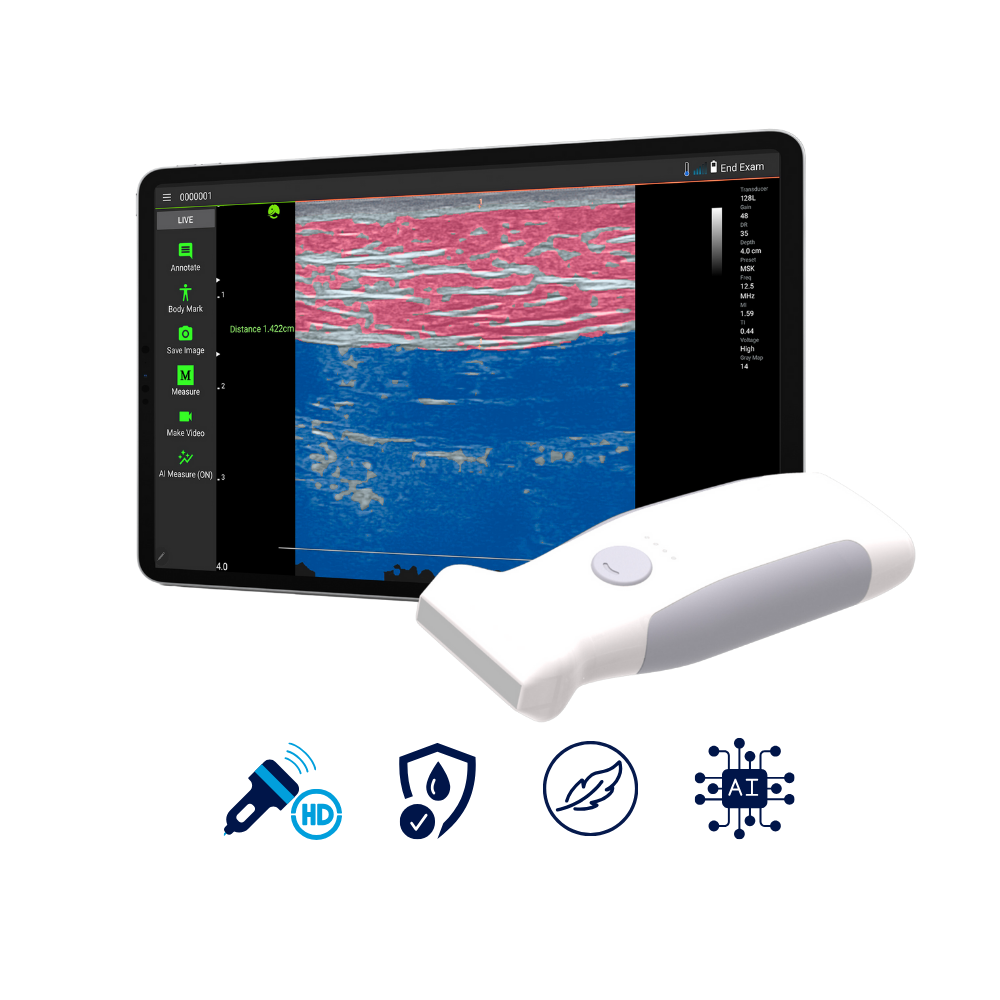

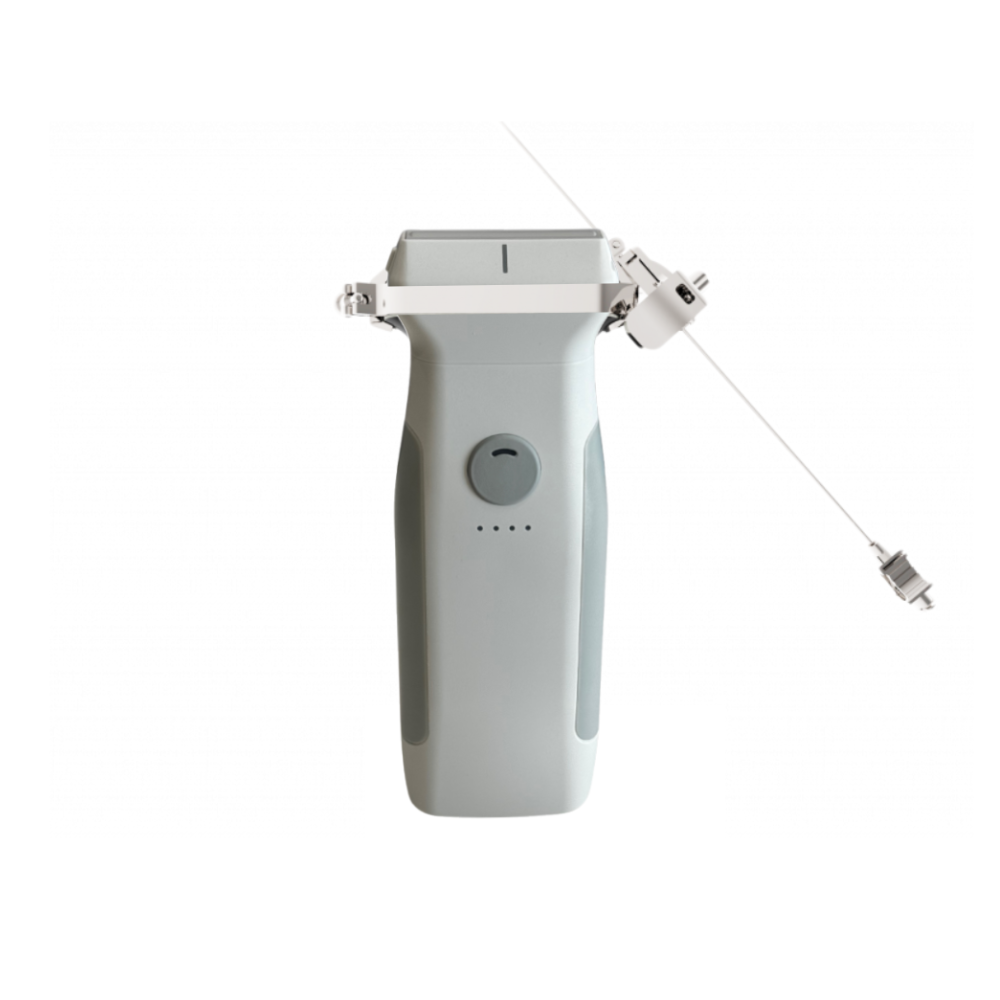

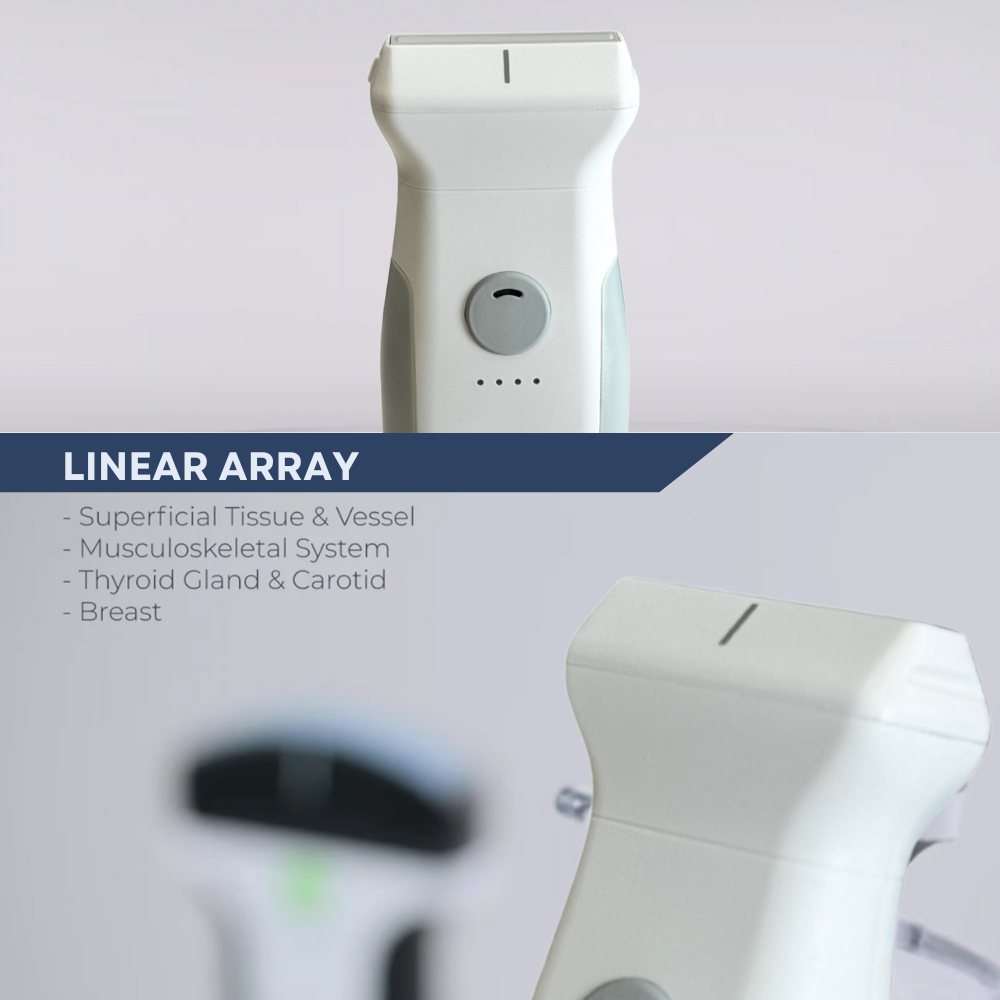

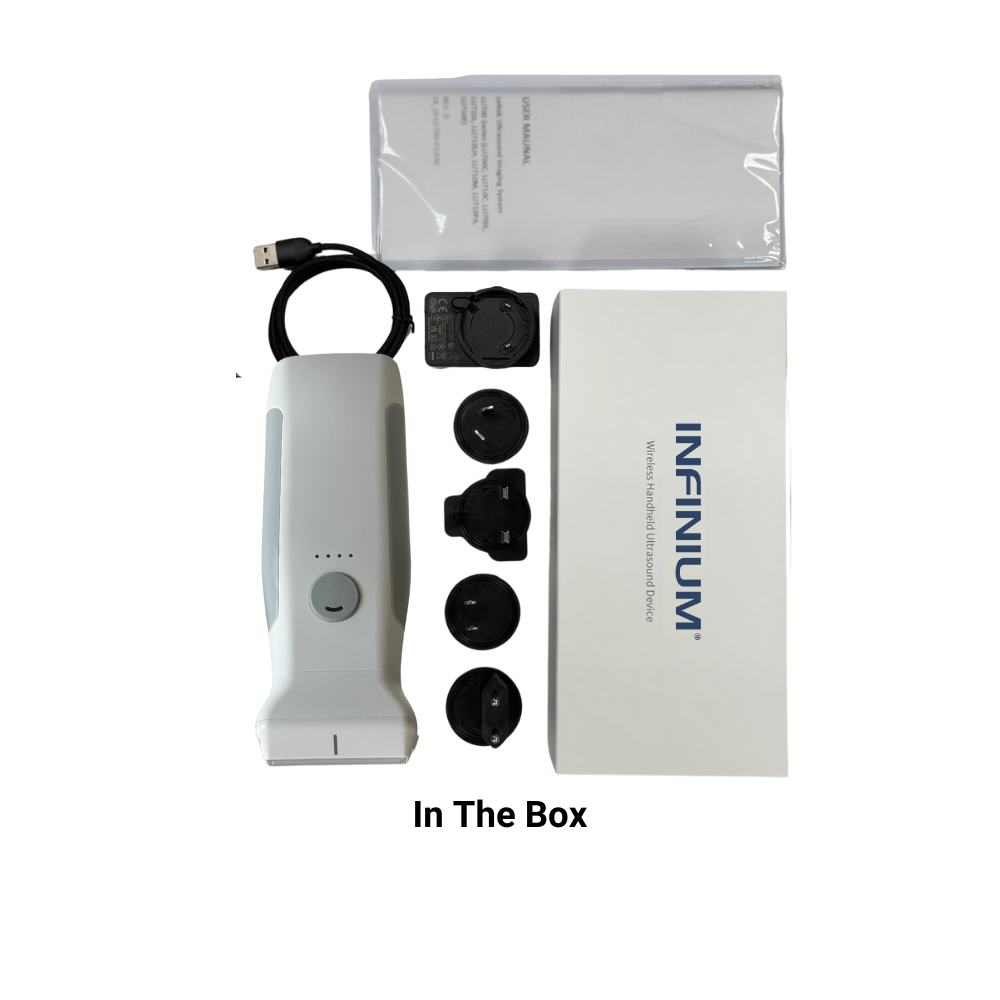

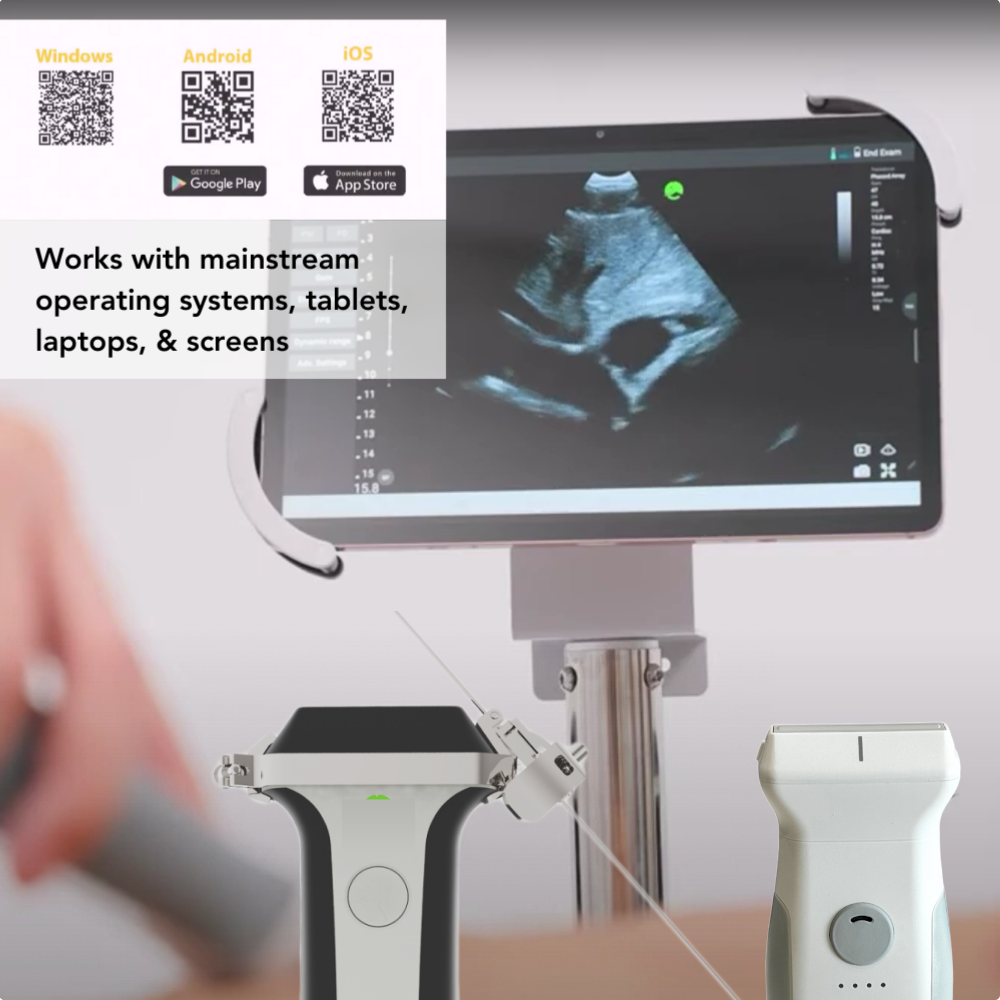

VioScan L2 - Wireless Handheld Linear Ultrasound

Technical Data

• Array type: Curved Convex
• Number of elements: 128
• Depth: 18.9 cm (7.44 inches)
• Frequency bandwidth: 2.0 – 5.0 MHz
• Field of view: 60°
• Depth: 18 cm (7.09 inches)
• Radius of Curvature: 60 mm (2.36 inches)
• Field of View: 60゜

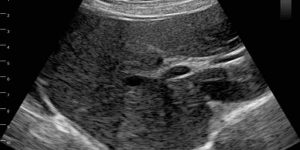

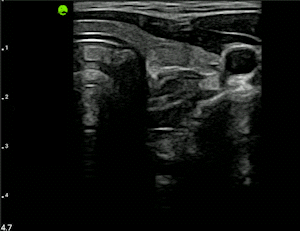

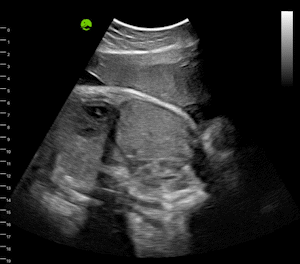

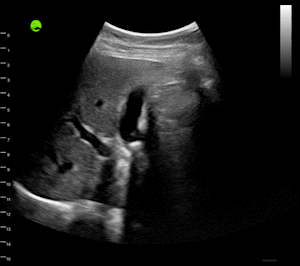

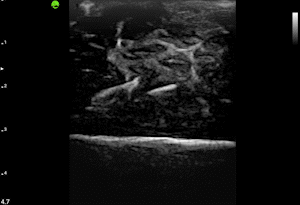

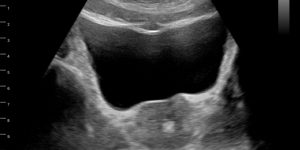

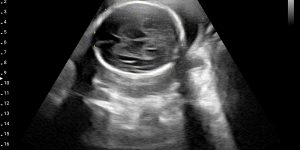

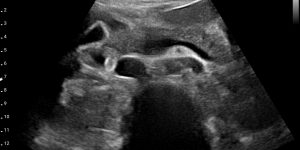

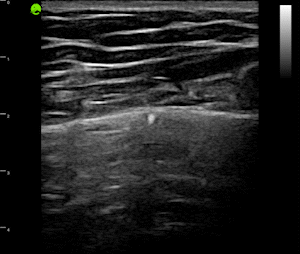

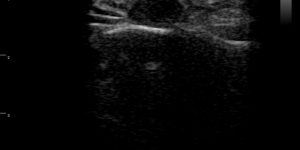

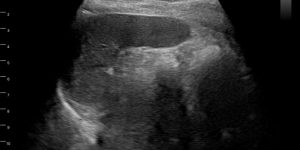

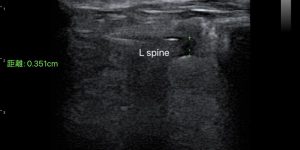

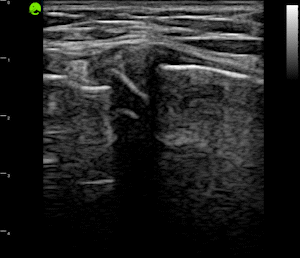

• Clinical Applications: Abdomen, Abdomen Difficult, Renal, GYN, OB Mid Late, OB Early, Spleen, Bladder

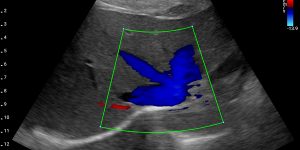

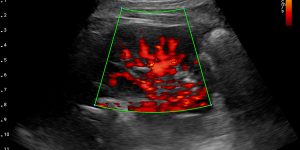

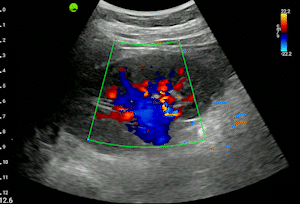

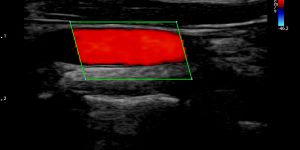

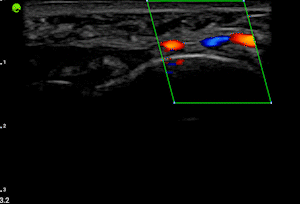

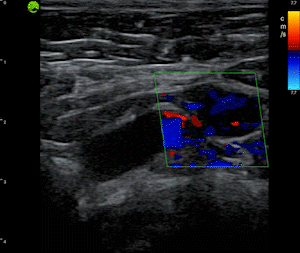

• Measurements, FAST, Color Doppler*, Power Doppler*, Pulsed Wave*

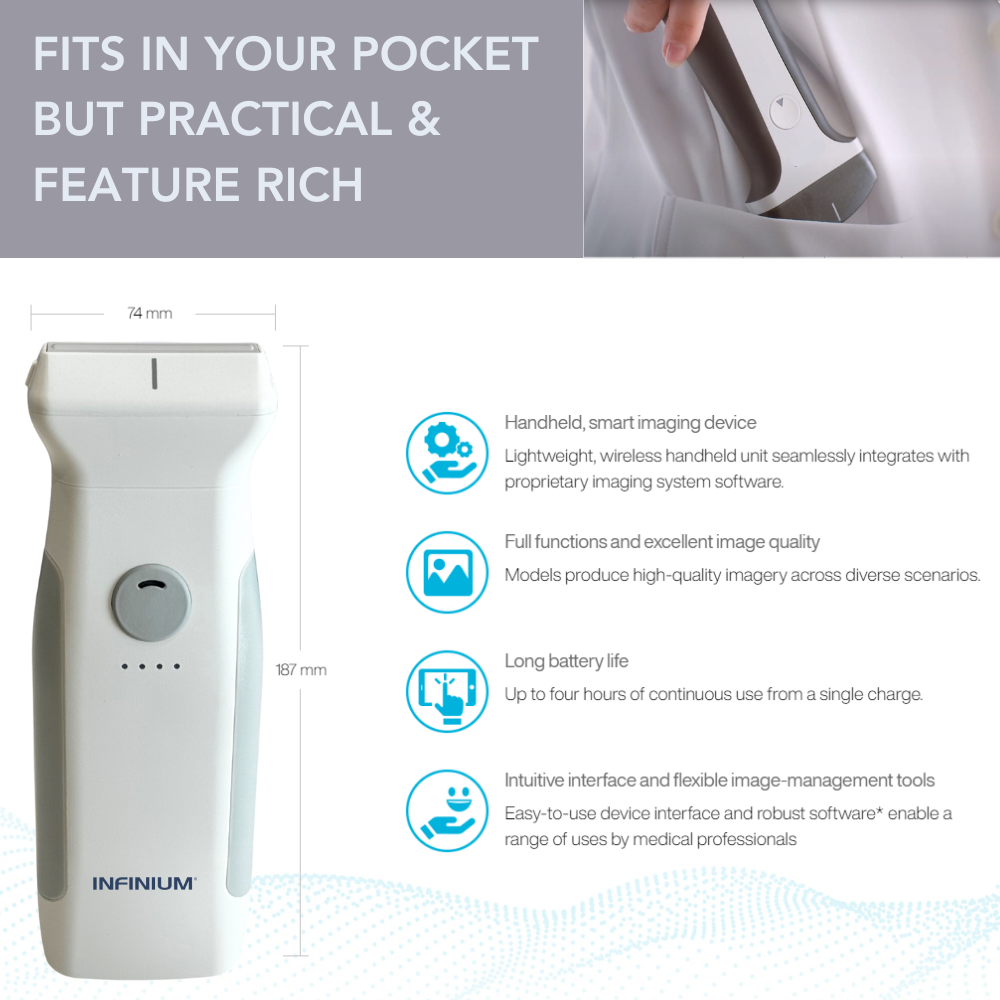

• Dimensions: 187 × 74 × 40 mm (7.36 × 2.91 × 1.57 inches)
• Weight: 388 g (13.69 oz)

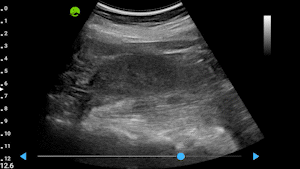

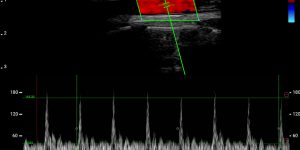

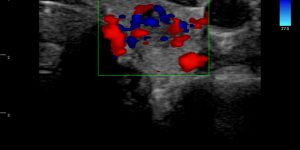

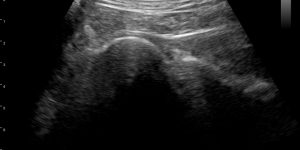

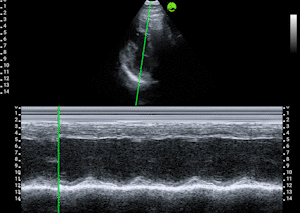

M mode measurement

• Ventricle Measure
• LVIDd : Left ventricular internal diameter end diastole
• LVIDs: Left ventricular internal diameter end systole
• EDV: End diastolic volume, amount of blood in the ventricle during diastole
• ESV: End systolic volume, amount of blood in ventricle after systole
• EDV Index: End-diastolic volume index, referred to as EDV corrected for BSA
  = EDV / BSA
• ESV Index: End- systolic volume index
  = EDV / BSA
• SV: Stroke volume, volume of blood pumped from the heart in one cycle of diastole and systole, is affected by
• Preload, contractility and Afterload
  = EDV – ESV
• CO: Cardiac output, quantity of blood pumped per minute through the aorta and into the peripheral circulation, is proportional to (Arterial pressure / Total peripheral resistance)
  = SV * HR
• EF: Ejection fraction, reflects the percentage of blood ejected from the ventricle
  = SV / EDV * 100%
• FS: Fractional shortening
  = (LVIDd – LVIDs) / LVIDd * 100%%

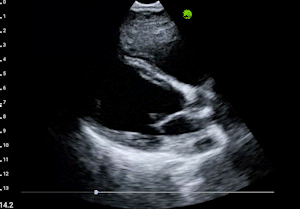

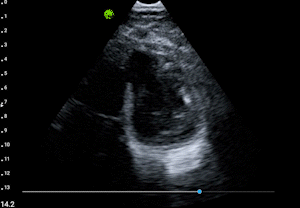

Cardiac measurement in B mode

• BSA: Body Surface Area
  = (Height * Weight / 3600)^½
• SV (ml): Stroke volume
  = EDV – ESV
• SI (ml/m²): Stroke volume index
  = SV / BSA
• CO (l/min): Cardiac output
  = SV * HR / 1000
• CI (l/m/m²): Cardiac Index
  = CO / BSA
• EF (%): Ejection fraction
  = SV / EDV * 100%
