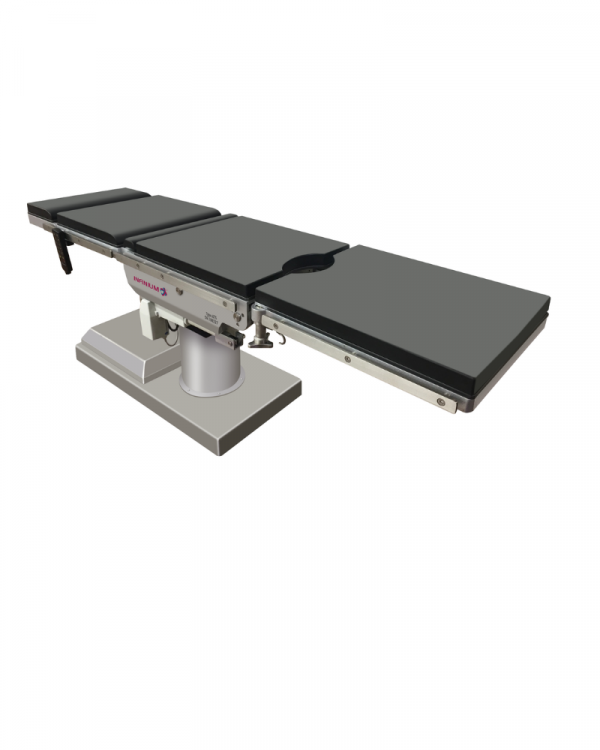

ATS Lateris Surgical Table

ATS Lateris Surgical Table

ATS Lateris Surgical Table

Request a quote today. Indicate the number of ATS Lateris Surgical Tables you would like represented in the quote. You can also leave a message with any questions or additional specifics you would like included in the quote.

Category
Share This Items :
Facebook
LinkedIn
WhatsApp

Description

Intuitive Motion

ATS Lateris SurgicalBuilt to the foremost standard of quality, with intuition and stability in mind. The ATS Lateris Surgical table exceeds the standards in patient positioning. The ATS surgical table features a C-arm compatible table top with up to a 1000 lb lift capacity (optional). The ATS is equipped with a 180-degree rotating tabletop to maximize patient imaging access. The horizontal movement feature maximizes efficiency in patient imaging. The ATS can also be& adjusted to a low height of 24 inches off from the floor to allow the surgeon better access while sitting.

Safety

ATS Surgical TableThe ATS Surgical table is mobile with 4 anti-static castors. The floor lock system braces the table in place with unyielding stability. A battery backup system (optional) can continue to power the table for hours in case of a power failure. The hand controller is outfitted with safety locks to avoid unintentional table movement. Return to level can be done quickly and efficiently with the touch of a button.

  • Silent electro-hydraulic movements
  • 500 LB Lift Capacity
  • Electronic control with safety lock
  • Mobile anti-static castors with floor lock
  • Horizontal Slide for Imaging Applications
  • 180 degree table top rotation
  • Flex / Reflex positioning
  • Easy access to electro-hydraulic system for service
  • Optional battery backup
  • Optional auto-reset / level function
  • Optional 1000 LB lift Capacity
  • 180 degree table top rotation for optimal surgical access
  • Lateral slide movement for optimal imaging access

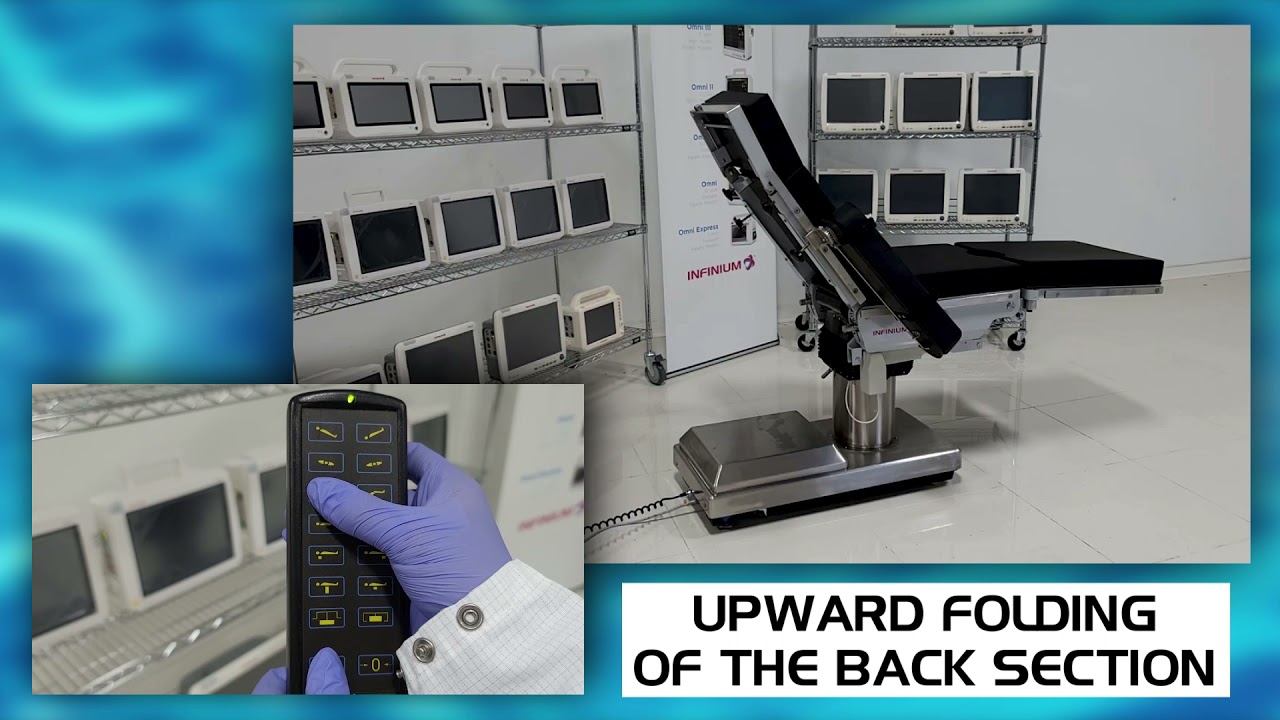

Ergonomic Hand Controls

  • Easy Touch Positioning
  • “E” Lock button to avoid accidental movement
  • Floor lock / Unlock
  • Optional Return to Level

Specifications

  • Height 700mm~1100mm
  • Trendelenburg / Reverse Trendelenburg 30°
  • Title Left/Right Oblique 15°,
  • Chest Plate Adjustment 25°/ 35°
  • Back Plate Adjustment +75°/ -20°
  • Head Plate Adjustment +20°/-90°
  • Leg Plate Adjustment 90°
  • Leg Plate Angle 0~ 90°
  • Rotation 0~ 180°
  • Longitudinal Shift 350mm
  • Wired Remote Control
  • Reset to Level Function Optional
  • Emergency Power Supply Optional
