Description
Surgical Tables
Product Summary
USA-configured electrohydraulic surgical table with a standard power solid leg section, 1,000 lb patient support class, and an 18 in longitudinal slide for C-arm workflows in surgery centers.
1,000 lb
Patient support class
22.83–42.52 in
Height (no pad)
18.11 in
Longitudinal slide
Solid power
Standard leg section
Overview

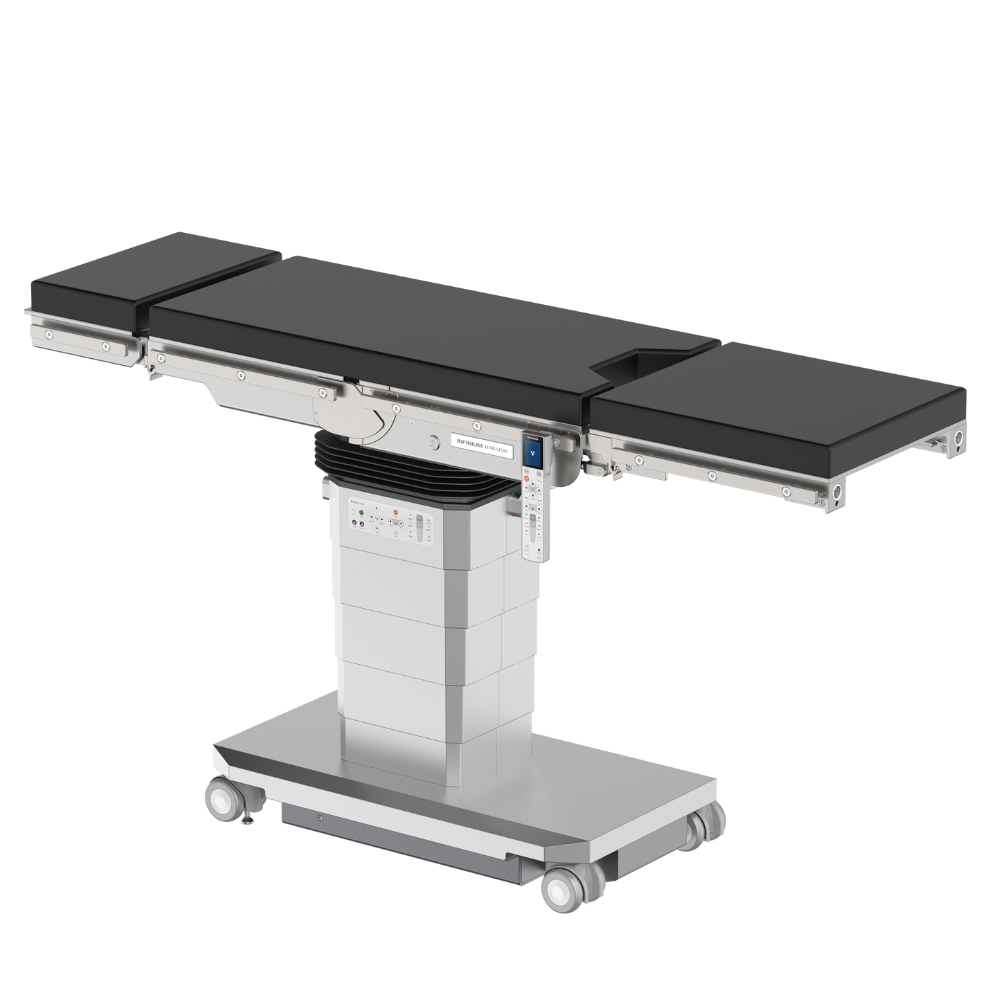

The Infinium ST500E is a 1,000 lb class surgical table platform engineered for flexible ASC and outpatient operating rooms. For USA customers, the standard configuration delivers all-electric (electrohydraulic) table functions with a power solid (one-plate) leg section, so teams get powered articulation without defaulting to a split-leg top.

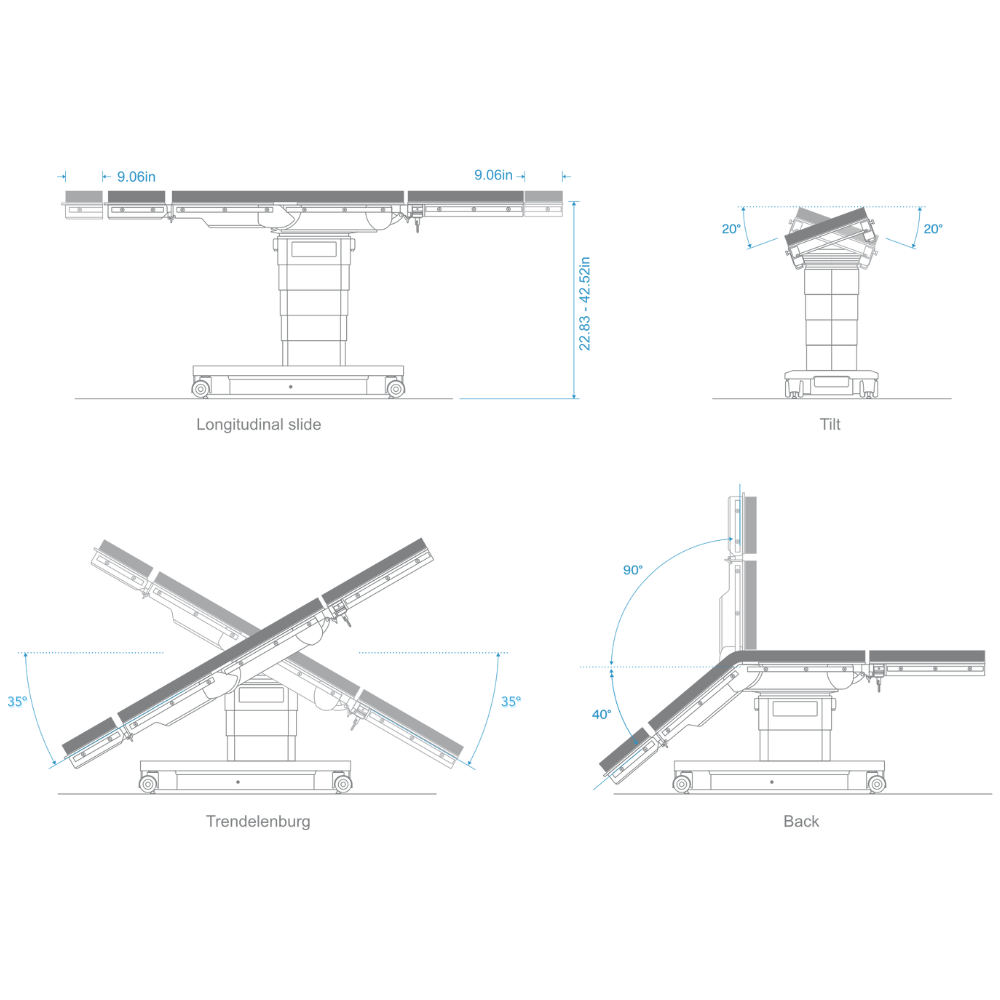

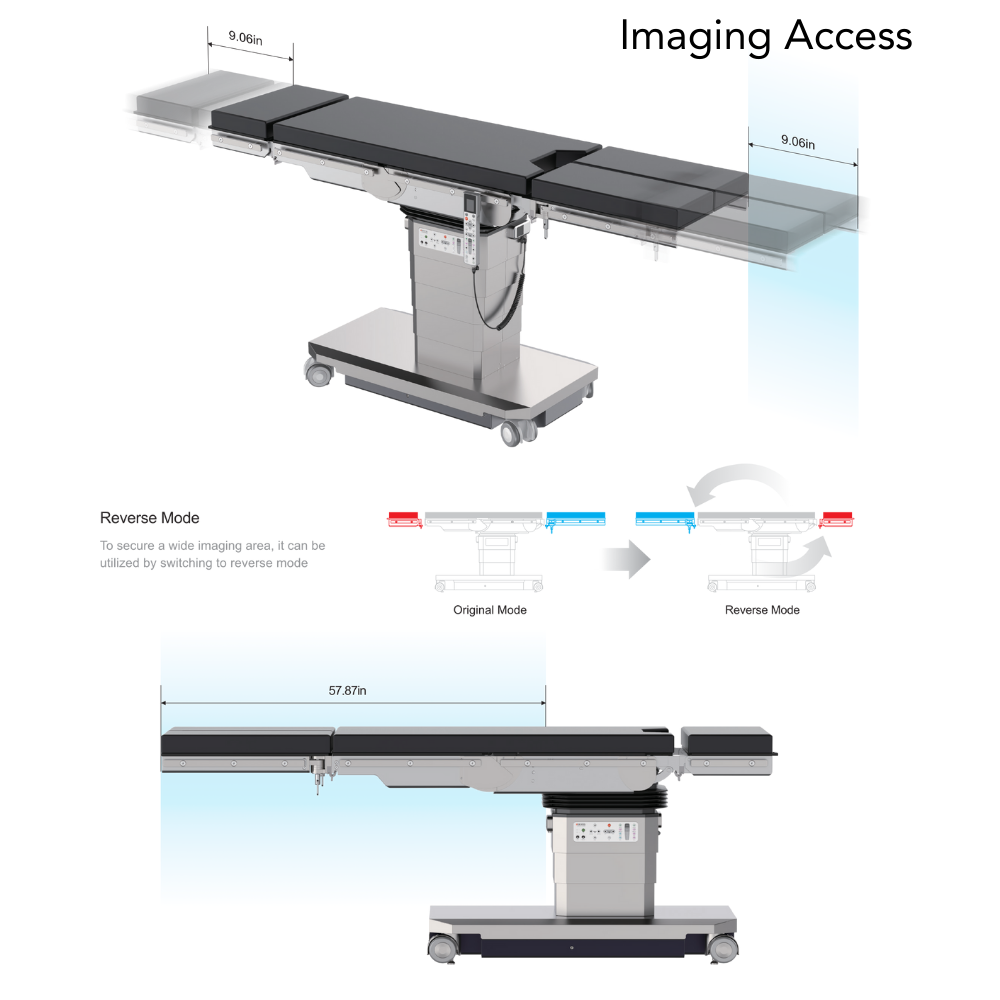

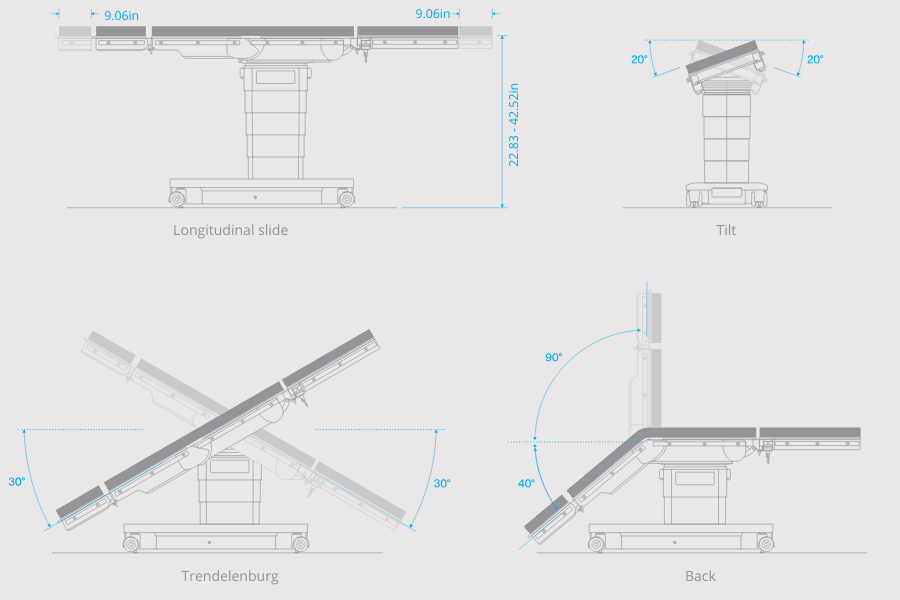

Height travel from about 22.83 to 42.52 in (without padding) supports low approaches for MIS and bariatric setups while still reaching working heights for orthopedic and related cases. An 18.11 in longitudinal slide and radiotranslucent top support C-arm access; reverse orientation expands imaging options when the case requires it. Corded LCD and wireless remote options show live table status, memory presets, return-to-level, and floor lock control, with electronic self-leveling floor locks and a mechanical emergency brake release path.
Stainless steel and aluminum construction, dual internal/external power with long-life batteries, one-click sectional connections, and a full rail-compatible accessory ecosystem keep turnover practical for high-mix surgery centers. Optional kidney elevator and procedure accessories are confirmed on the Infinium Medical quote.
Explore this listing: open Safety & Ergonomics for anti-collision and comfort detail; Imaging Ready for C-arm and reverse-mode visuals; Accessories for rail attachments; Technical Specifications for full dimensions, loads, and drawings.
Key Features
USA all-electric solid-leg platform

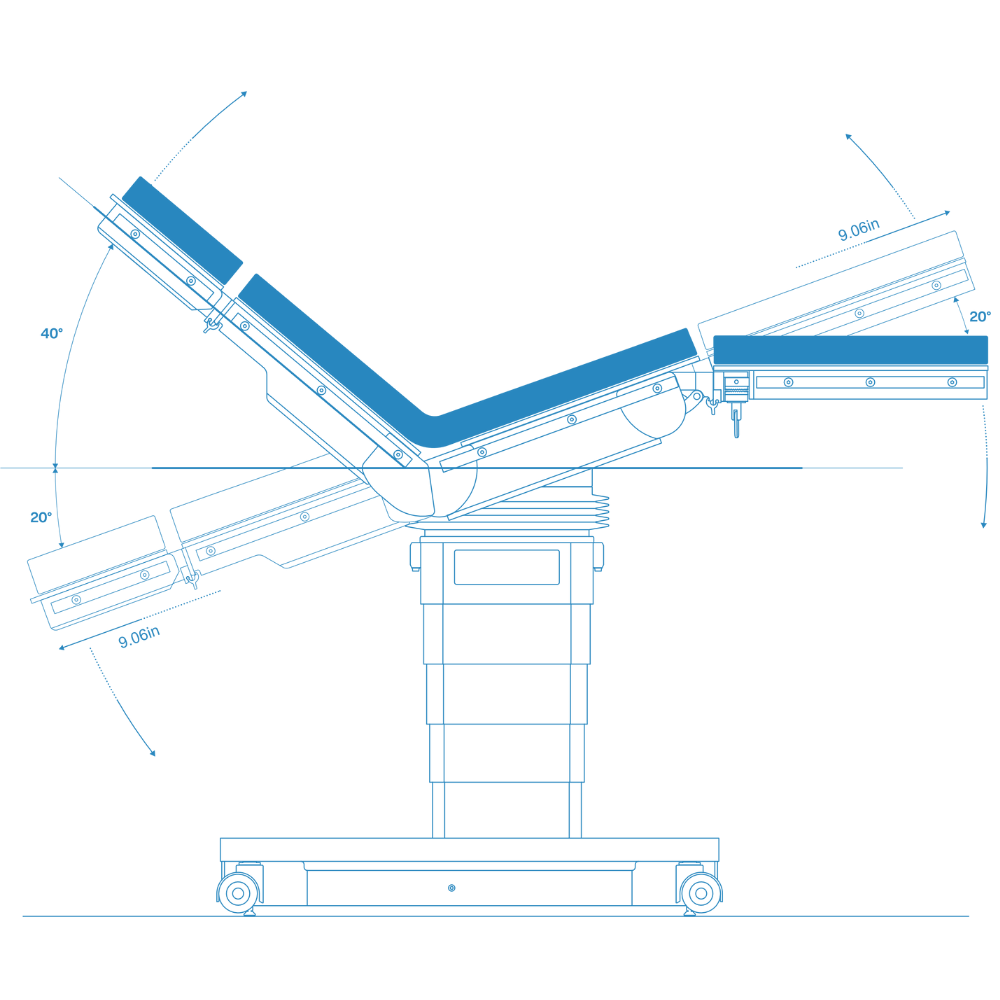

Electrohydraulic positioning with a standard power solid (one-plate) leg section for USA customers. Split-leg configurations are available separately when required.
1,000 lb support class with wide height range
Up to 1,000 lb patient support when centered for raise/lower, with height about 22.83–42.52 in without padding for diverse OR setups.
18 in slide for imaging access

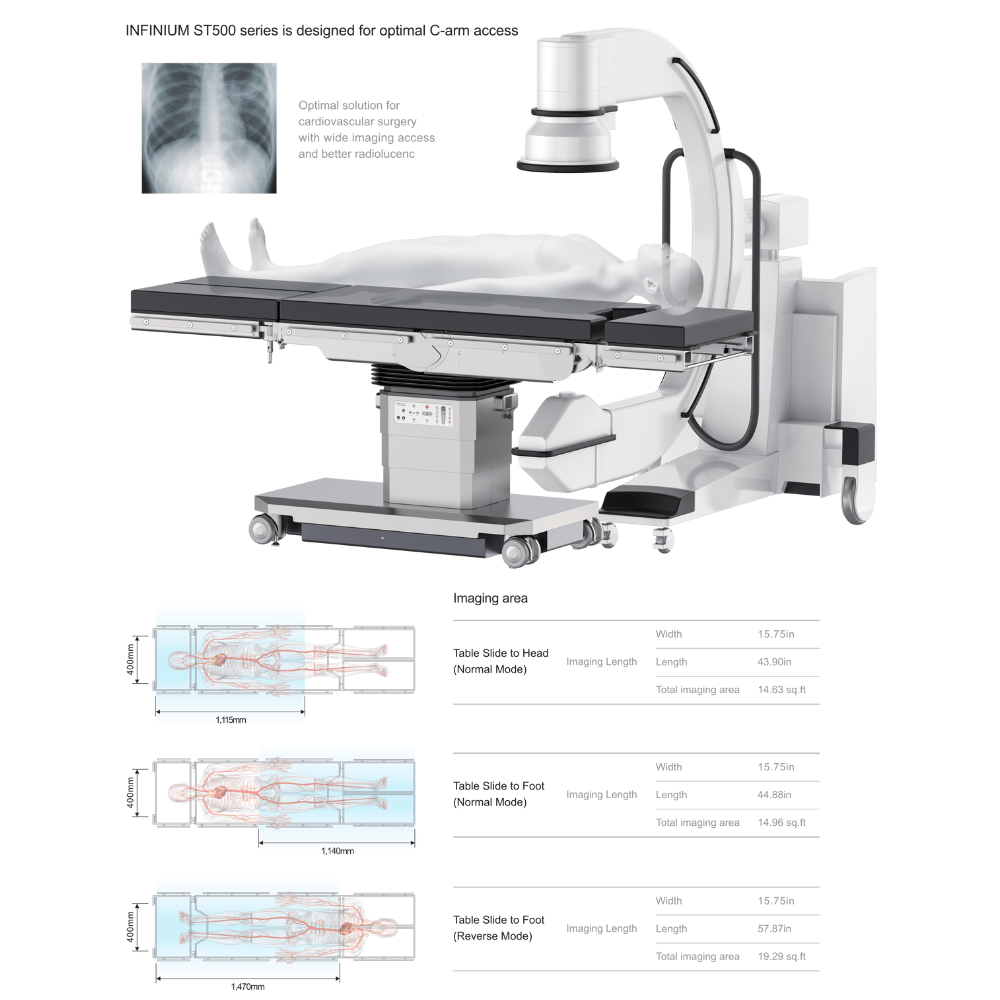

About 18.11 in longitudinal slide plus a radiotranslucent top for C-arm positioning. See Imaging Ready for mode visuals.

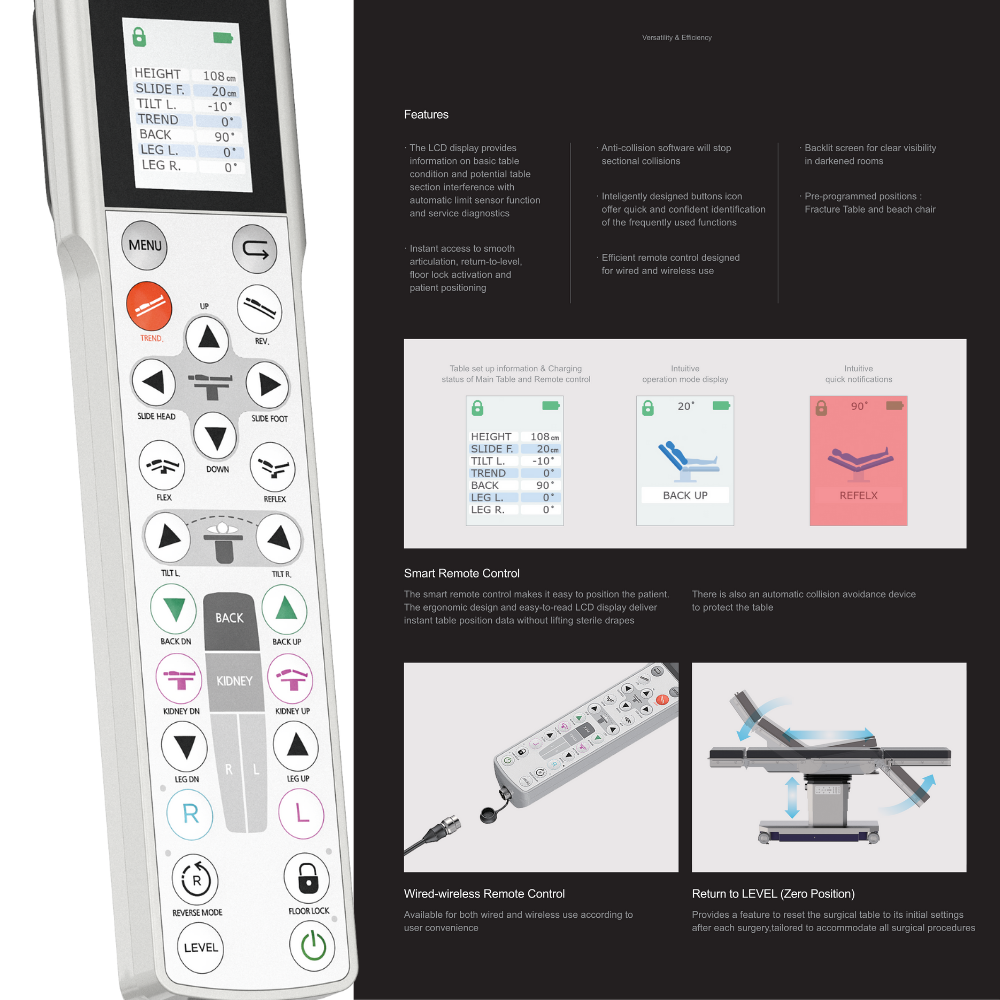

Smart LCD remote and memory presets
Wired and wireless remote options with live status, return-to-level, floor lock control, and pre-programmed positions (including fracture-table and beach-chair oriented presets per brochure).
Collision-aware safety stack

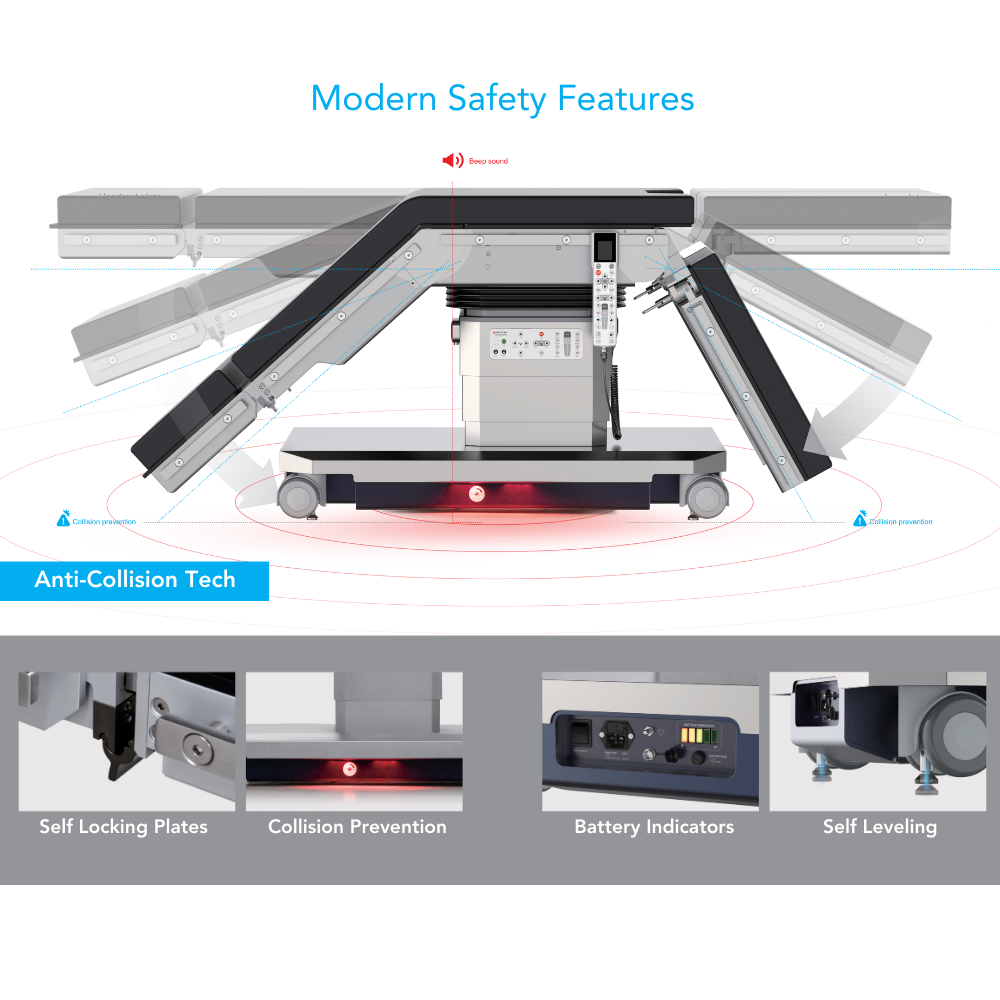

Anti-collision logic, sectional limit sensing, battery indicators, and 4-point self-leveling electronic floor locks. See Safety & Ergonomics.
Fast accessory changes on standard rails
One-click sectional connections and symmetrical accessory interfaces for normal and reverse orientation. Browse the Accessories tab for the attachment catalog.
Control & imaging
Remote and imaging access
Available options
- Standard USA configuration: all-electric functions + power solid leg section
- Optional split-leg top / ST500 split-leg sister listing when required

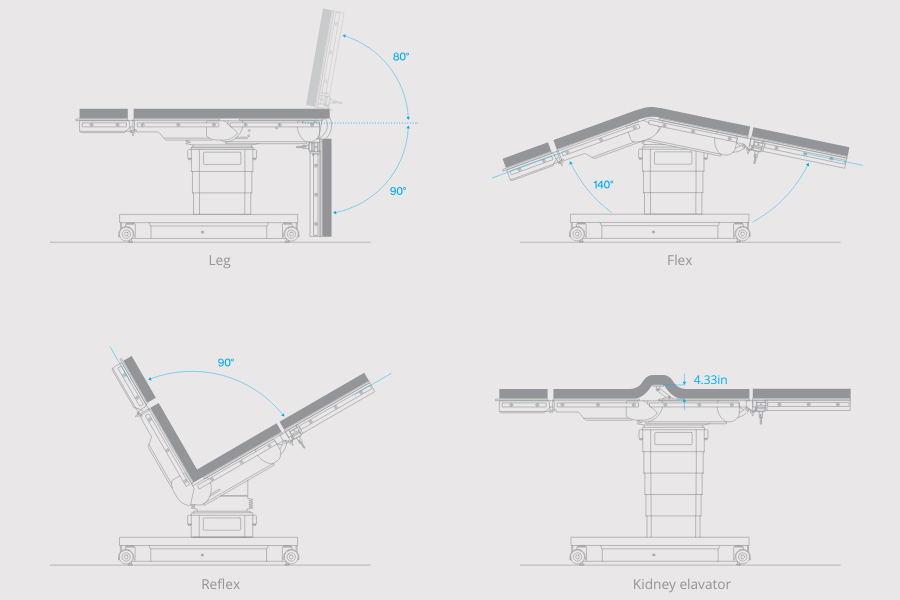

- Optional kidney elevator (about 4.33 in / 11 cm)
- Corded LCD remote; wireless remote option

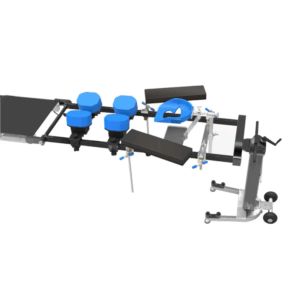

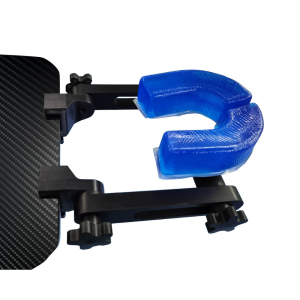

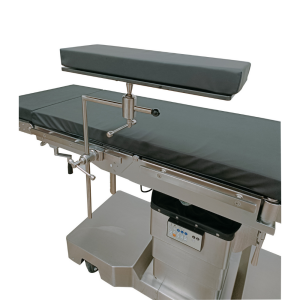

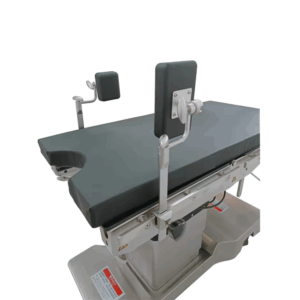

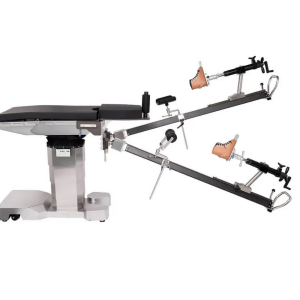

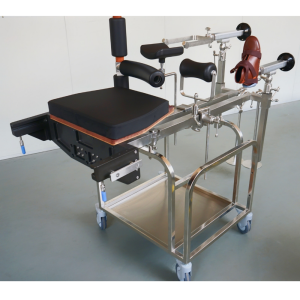

- Procedure accessories (arm boards, stirrups, traction frames, spine frames, gel pads, and more) via Accessories
- Pairing with Infinium Luxor surgical lights when specified on quote
- Final BOM, pad set, and warranty confirmed on the Infinium Medical quote
Clinical Applications
Use the Infinium ST500E in ambulatory surgery centers, outpatient ORs, and specialty procedure suites that need a versatile 1,000 lb class table with powered positioning and solid-leg workflow. Brochure procedure configurations include lower limb, orthopedic, spine, gynecology and urology, neurosurgery, and kidney cases, including setups that benefit from Flex positioning and an optional kidney elevator. Imaging-capable tops and longitudinal slide support C-arm work in normal and reverse orientations for hybrid or fluoro-assisted outpatient cases. Confirm specialty attachments, pads, and imaging orientation for each service line on the Infinium Medical quote.

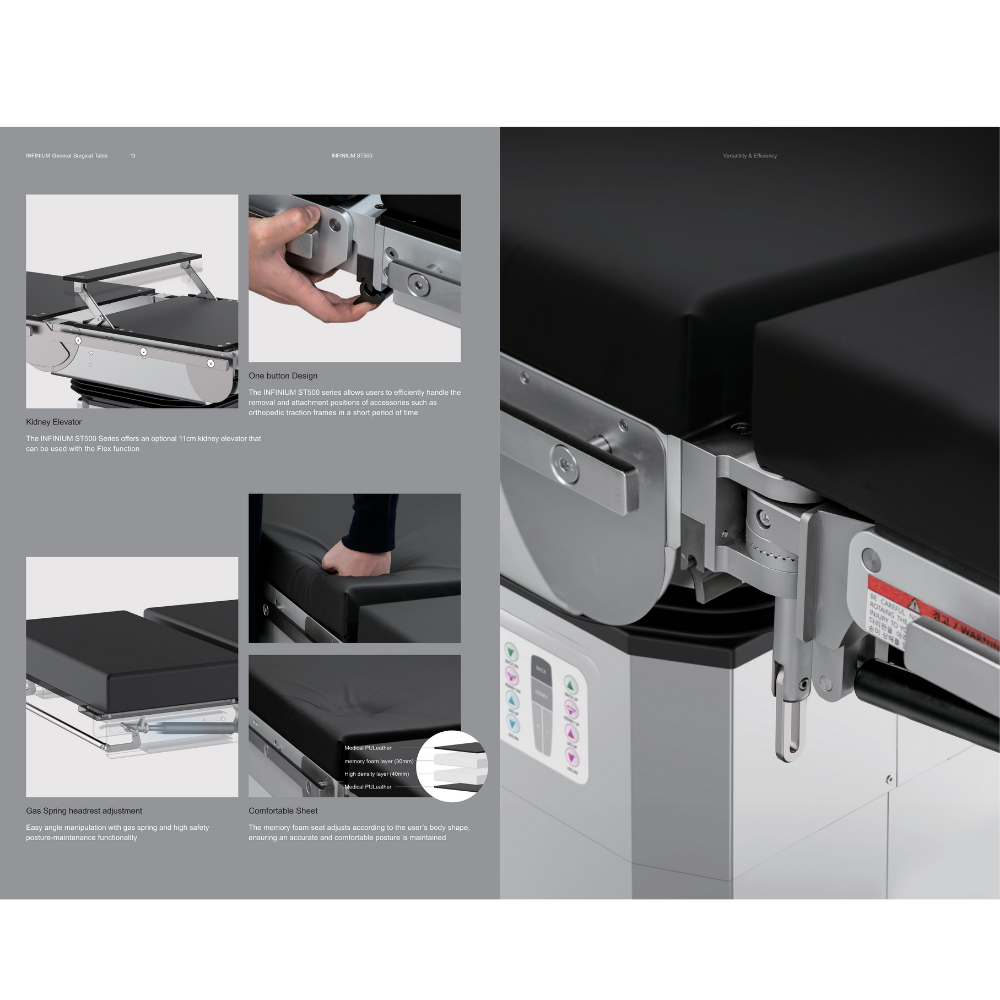

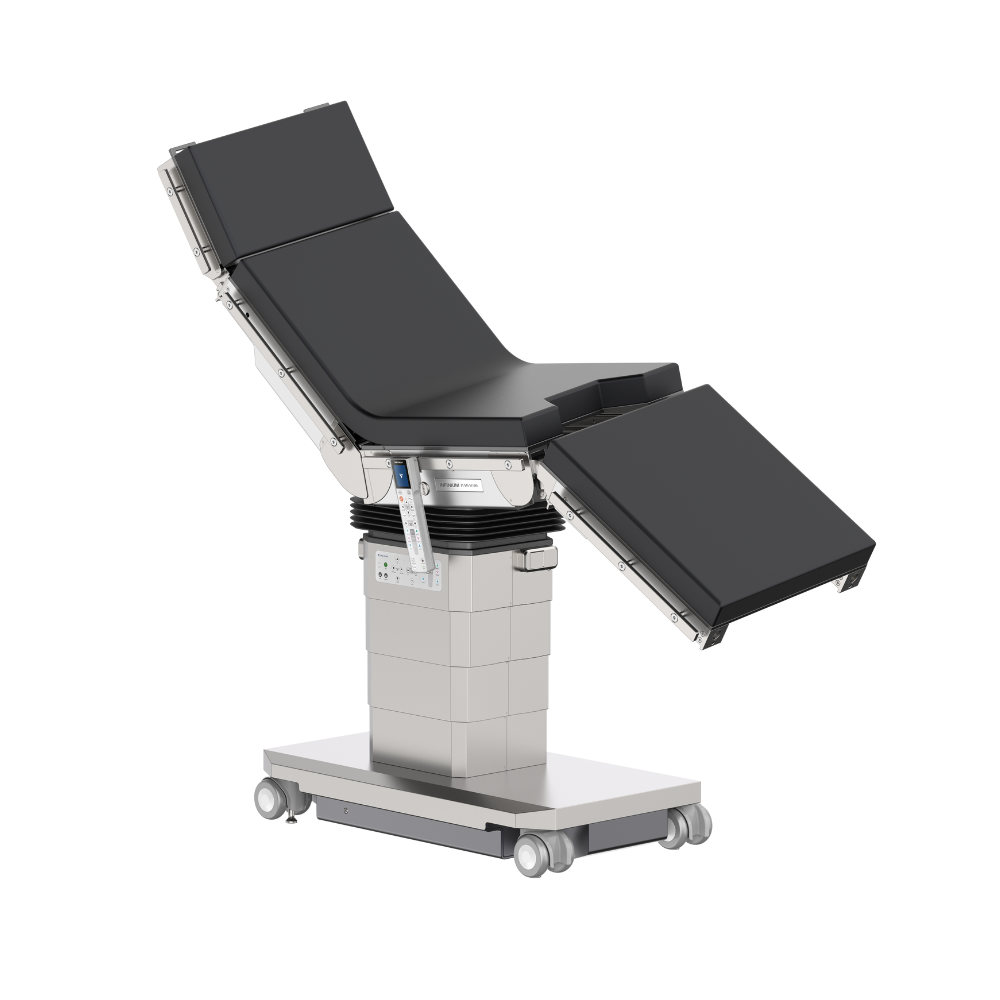

Raised and seated positioning for ASC and outpatient cases
Real World Ergonomics
