Luxor 400 Series Operating Room Lights

A sleek high intensity LED operating room lighting system with a touch-screen and wireless remote features. This well-built line is designed for reliability, maximum output, ease of use, and is very simple to clean and maintain.

Swipe or tap to view images

View full description Download Brochure

Categories: Surgical Lights, TAA Compliant Medical Equipment Web ID: 14540

Description Version Specifications L400 Specs Continued Brochure Download

Description

A sleek high intensity LED operating room lighting system with a touch-screen and wireless remote features. This well-built line is designed for reliability, maximum output, ease of use, and is very simple to clean and maintain. The 400 series is a powerful and modern operating room lighting system that includes many innovative features at a price point design to make the most of your budget. Options include battery backup, HD camera, additional arms, and a variety of configuration and mounting options.

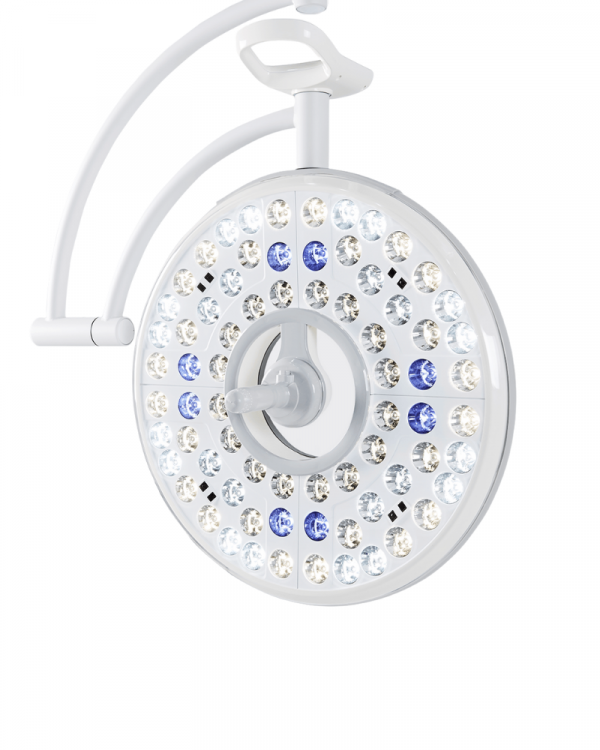

The S400 Series Features:

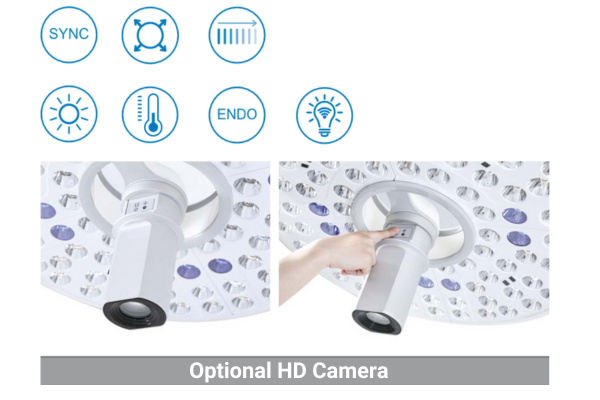

Luxor 400 Operating Room Lights with Optional integrated HD Video Camera

Synchronized control with dual lighting option

5-step adjustable intensity up to 160,000 lux

5-step adjustable light field from 7″ to 11.8″

Color rendering index Ra 97 / R9 97

4-step adjustable color temperature: (3,600K, 4,200K, 4,800K, 5,400K)

One-click endoscopy mode

Smart sensors enhances shadow dilution & illumination depth

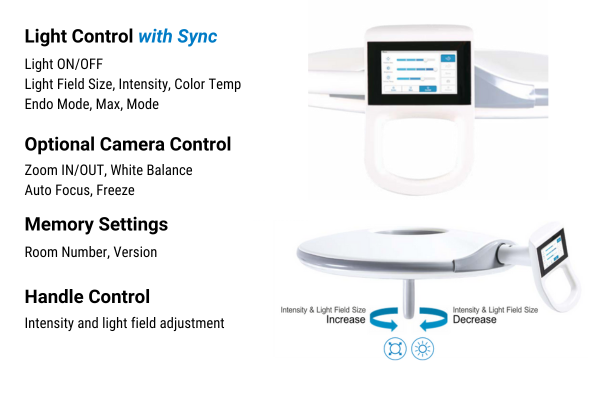

Modern touch and camera controls

Wireless app control available

Optional integrated HD video/still camera

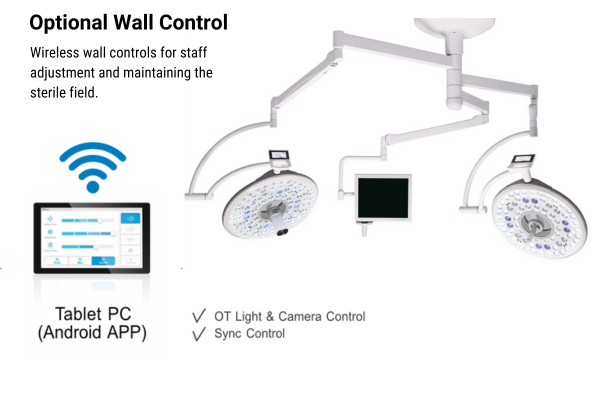

Optional wall control tablet

Version Specifications

Feature	L400 ( Std Default )	M400 ( Smaller Option )
Installation	Single Ceiling	Dual Ceiling Mobile
Head Size (in)	28.74	24.80
No. of LED (ea)	96	72
Intensity (lx)	160,000	140,000
Intensity Control	5 Steps (40,000-160,000)	5 Steps (40,000-140,000)
C.R.I (Ra/R9)	97/97	97/97
Color Temp. (K)	3,600/4,200/4,800/5,400	3,600/4,200/4,800/5,400
Light Field Size (in)	5 Steps (7.09-11.81, Circle)	5 Steps (7.09-11.81, Circle)
Detachable Centre Grip	Yes (2X)	Yes (2X)
Depth of Illumination (in)	25.59	23.62
Smart Sensor	Yes	Yes
LED Life Span (hrs)	60,000	60,000
Option	Full-HD Camera Wall Controller (Tablet PC) Backup Battery	Full-HD Camera Wall Controller (Tablet PC) Backup Battery

L400 Specs Continued

LUXOR L400 Specifications

Specifications	Unit	LUXOR L400
Normal Mode
Central Illuminance Ec(@1m)	lx	160,000
Electronic adjustment range	%	25 – 100
Light field diameter d10	cm	7.09 – 11.81
Light field diameter d50	cm	3.94 – 7.09
Diameter d50/d10	N/A	0.55
Depth of illumination at 60%	in	25.59
Color temperature (4 levels)	K	3,600/4,000/4,800/5,400
Color rendering index Ra	N/A	97
Special color rendering index R9	N/A	97 ± 3
Shadow dilution
With tube	%	95
With one mask	%	90
With two masks	%	65
With one mask, at base of tube	%	85
With two masks, at base of tube	%	60
Turbulence intensity (DIN 1946-4)	%	13.57
Radiation energy	mW/m²·lx	3.7
Illumination energy(Ee)	W/m²	570
ENDO Mode
Illumination	lx	8,000 Ec* 5%
