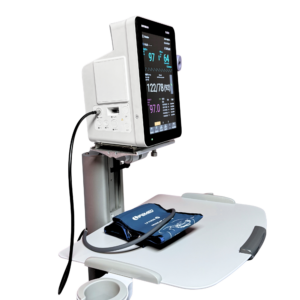

Name: Infinium CLEO2 Vital Signs Monitor
Brand: Infinium Medical
Availability: InStock

Description

Infinium CLEO2 Vital Signs 10.1 in Touchscreen Spot Check + Continuous

Vital Signs Monitors

Product Summary

Compact vital signs platform for NIBP, pulse rate, and temperature, with optional Spot Temp, SpO2, and EtCO2 on a 10.1-inch touchscreen.

10.1 in

Multi-touch display

NIBP · PR · Temp

Core vitals

Spot / Continuous

Operating modes

≤ 7.17 lb

Mainframe weight

Parameters & Features at a Glance

Overview

The Infinium CLEO2 Vital Signs Monitor is a portable 10.1-inch touchscreen system for everyday vital signs work: non-invasive blood pressure, pulse rate, and temperature, with optional Spot Temp, SpO2, and end-tidal CO2 when the care path needs them. Clinicians can run continuous monitoring or switch to spot-check mode for fast assessments in clinics, surgery centers, and floor or transport settings.

NIBP supports manual, automatic, average, and STAT cycles for adult, pediatric, and neonate cuff ranges. Optional infrared temperature modules (Infinium or Exergen paths) and optional SpO2 (Infinium or Nellcor sensor options) extend the base vitals set. Optional sidestream EtCO2 adds EtCO2 and airway respiratory rate with waveform display when ventilation monitoring is required.

Networking options include wired Ethernet and Wi-Fi with bi-directional HL7 communication for HIS/EMR workflows. Early warning scoring options such as MEWS and NEWS are available when configured. Trend storage supports extended review of vitals history. Mounting choices include rolling stand, wall mount, and pole mount. Exact parameter package, accessories, and warranty vary by configuration.

Key Features

Core vitals on one screen

NIBP, pulse rate, and temperature as the vital signs baseline, with room to add Spot Temp, SpO2, and EtCO2 by configuration.

Continuous or spot-check modes

Switch between continuous patient monitoring and spot-check workflows on the same 10.1-inch multi-touch display.

Flexible NIBP modes

Oscillometric NIBP with manual, automatic, average, and STAT operation for adult, pediatric, and neonate patient types.

Optional SpO2 and EtCO2

Add SpO2 (Infinium or Nellcor options) and optional sidestream EtCO2 with awRR and waveform when respiratory monitoring is needed.

Clinic-ready connectivity

Ethernet and Wi-Fi networking with bi-directional HL7 paths for charting systems, plus optional barcode, keyboard, and mouse inputs.

Portable power and mounting

Rechargeable lithium battery options (about 4 hours with one battery; up to about 8 hours with two) and rolling stand, wall, or pole mounting.

More platform highlights

Early warning scoring options such as MEWS and NEWS when configured
Extended trend review — up to 120 hours of patient trends and large NIBP history capacity
Compact mainframe with IPX2 water protection for everyday clinical use
Optional infrared temperature module (Infinium or Exergen sensor paths)
Optional integrated thermal printer (up to 3 channels)
Wi-Fi IEEE 802.11b/g/n alongside Ethernet and HL7 networking

Available options

Optional Spot Temp / infrared temperature module (Infinium or Exergen sensor paths)
Optional SpO2 module and sensors
Optional integrated sidestream EtCO2
Optional integrated thermal printer (up to 3 channels)
Rolling stand, wall mount, or pole mount
Barcode scanner, keyboard, or mouse attachments
Second battery for extended runtime
Capnograph-focused configuration listed separately (see Additional Configuration)
Final parameter set and warranty vary by configuration

Clinical Applications

Use the CLEO2 Vital Signs Monitor for outpatient clinics and medical practices that need fast NIBP, pulse, and temperature checks; ASC and surgery-center pre-op / PACU spot checks; med-surg or step-down bedside vitals where continuous or intermittent monitoring is enough; and portable or transport-adjacent vitals when a compact touchscreen unit is preferred. Choose optional SpO2 when oxygenation tracking is part of the visit, and optional EtCO2 when the same device must also support ventilation monitoring. For EtCO2-first procedure and sedation rooms, see the Capnograph configuration. Confirm options and mounting against room layout before comparing monitors. Do not position as a full multi-parameter ICU workstation.

Infinium CLEO2 in pediatric care setting

Parameter	Value (Imperial)	Value (Metric)
Dimensions	7.87" (W) x 10.83" (H) x 6.50" (D)	200 mm (W) x 275 mm (H) x 165 mm (D)
Weight (mainframe, without accessories)	≤7.17 lbs	≤3.250 kg
Sound Volume	6 levels (OFF, 1-5; default 2)
Speaker	IEC 60601-1-8 Alarm sounds (45-85 dB), button sounds, pulse sounds; multi-level volume
Screen	10.1-inch TFT-LCD, 1280 x 800 pixels at 60 Hz (24-bit colors), multi-touch capacitive touchscreen
Alarm Output Sound Pressure	40 dB(A) to 85 dB(A) within 1 meter
Electrical Protection	Class I, with internal power. Type CF defibrillation proof for SpO2, NIBP, EtCO2
Communication Ports	Ethernet (1000M), 2x USB 2.0, USB Type C; Equipotential, Nurse Call
Water Protection	IPX2 (protection against vertically falling water drops when enclosure tilted up to 15°)
Ethernet	IPv4, DHCP/Static IP (default DHCP)
Operating Temperature	41 °F to 104 °F	5 °C to 40 °C
Storage Temperature	-4 °F to 131 °F	-20 °C to 55 °C
Operating Humidity	15% to 95%
Storage Humidity	10% to 95%
Barometric Pressure	600 mmHg to 788 mmHg	80 kPa to 105 kPa
Voltage	100 to 240 V
Current	1.5 to 0.5 A
Frequency	50/60 Hz
Internal Storage	8 GB (usable 3 GB)
External DC Power Interface	1 (11.1 V, 5.2 A; requires Class I, IEC 60601-1 certified, 2MOPP adapter)
Battery	Rechargeable lithium, 11.1 V DC, 5200 mAh x 2
Battery Dimensions	5.7" x 2.5" x 0.85"	145 mm x 64 mm x 21.5 mm
Battery Weight	0.75 lbs	340 g
Brightness	6 levels (0-5; default 3; night mode 0)
Battery Run Time	≥ 8 hours (two batteries, new fully charged, 77 °F, normal conditions); ≥ 4 hours (one battery)	≥ 8 hours (two batteries, new fully charged, 25 °C, normal conditions); ≥ 4 hours (one battery)
Battery Charge Time (OFF)	0-90%: < 4 hours; 0-100%: < 5 hours
Battery Charge Time (ON)	0-90%: < 7 hours; 0-100%: < 10 hours
Battery Shutdown Delay	≥ 15 minutes (from first low battery alarm)
Thermal Printer	Thermal dot array, 2.36" (60 mm), 25 mm/s, 1, 2, or 3 channels	Thermal dot array, 60 mm, 25 mm/s, 1, 2, or 3 channels
Physiological Parameters	Core: NIBP-SYS/DIA, PR, Temp; optional Spot Temp / infrared temp, SpO2, EtCO2, awRR
NIBP Modes	Manual, Average, Auto (2-240 min intervals), STAT (5 cycles)
NIBP Measurement Types	Oscillometry - Adult, Pediatric, Neonate
NIBP Resolution	1 mmHg
NIBP Defib Recovery	< 5 s
NIBP Max Time	180 s (Adult/Ped), 90 s (Neonate)
NIBP Historical Records	Up to 86,400
NIBP Initial Inflation (Adult)	80-240 mmHg, default 180
NIBP Initial Inflation (Ped)	80-240, default 140
NIBP Initial Inflation (Neo)	60-120, default 100
NIBP Static Pressure	0-300 mmHg, ±3 mmHg
NIBP Dynamic Pressure Ranges (Adult)	SYS 40-270/DIA 10-210 mmHg
NIBP Dynamic Pressure Ranges (Ped)	SYS 40-230/DIA 10-150 mmHg
NIBP Dynamic Pressure Ranges (Neo)	SYS 40-135/DIA 10-95 mmHg
NIBP Dynamic Accuracy	Max mean error ±5 mmHg; max std dev 8 mmHg
NIBP Overpressure Protection	297±3 mmHg (Adult/Ped), 147±3 mmHg (Neo)
NIBP PR Range	40-240 bpm
NIBP PR Accuracy	±3 bpm or 2%, greater
SpO2 Sweep Speed	12.5 mm/s, 25.0 mm/s
SpO2 Defib Recovery	<5 s
SpO2 Measurement Range	0%-100%
SpO2 Alarm Response	≤12 s
SpO2 Modules	Infinium, Nellcor
SpO2 Resolution	1% (Infinium/Nellcor)
SpO2 Accuracy (70-100%)	Infinium: ±3% (with motion), ±2% (no motion); Nellcor: ±2% (Adult/Ped), ±3% (Neonate)
SpO2 Response Time	≤30 s (Infinium/Nellcor); refresh 1 s
SpO2 Low Perfusion	0.3-20% (Infinium)
PR (from SpO2) Range	30-250 bpm (Infinium), 20-300 bpm (Nellcor)
PR Resolution	1 bpm
PR Accuracy	Infinium: ±2 bpm (no motion), ±3 bpm (motion); Nellcor: ±3 bpm (20-250 bpm)
Temp Features	Infrared method; Response time: 0.5s; Resolution: 0.1°C (0.2 °F); Units: °C/°F; Comm: USB
Temp Sensors	Infinium infrared sensor (93.2 °F to 109.2 °F, accuracy ±0.4-0.5 °F); Exergen temporal scanner (60.8 °F to 109.4 °F, accuracy ±0.2 °F)	Infinium infrared sensor (34.0 °C to 42.9 °C, accuracy ±0.2-0.3 °C); Exergen temporal scanner (16.0 °C to 43.0 °C, accuracy ±0.1 °C)
EtCO2 Features	Infrared absorption; Warm up: 10s; Rise time: ≤500 ms; Response: ≤8 s; Defib recovery: <5 s; Flow Rate: 75 ml/min (±15% or ±15 ml/min, greater); Range 0-150 mmHg (0-20%, 0-20 kPa)
EtCO2 Accuracy	0-40: ±2 mmHg; 41-76: ±5%; 77-99: ±10%; 100-150: ±(3 mmHg +8%) - 1mmHg resolution
awRR Range	0-150 rpm
awRR Accuracy	±1 rpm
awRR Resolution	1 rpm
Wi-Fi Standards	IEEE 802.11b/g/n (2.4G)
Wi-Fi Frequency	2412-2462 MHz (HT20); 2422-2452 MHz (HT40)
Wi-Fi Modulation	DSSS (802.11b), OFDM (802.11g/n)
Wi-Fi Radiation Power	<20 dBm (average), <30 dBm (peak)

Rechargeable lithium battery (one included for typical runtime; second battery optional)
Power cord
Optional Spot Temp / infrared temperature module (Infinium or Exergen paths)
Optional SpO2 module and sensors
Optional sidestream EtCO2 (or see Capnograph Additional Configuration)
Optional integrated thermal printer
Rolling stand, wall mount, or pole mount
Optional barcode scanner, keyboard, or mouse
Exact kits and warranty confirmed on quote
