Electromagnetic technology offers the optimal balance of power, precision, reliability, and usability for modern clinical practice. It provides deeper penetration up to 10-12 cm, targeting tendons, ligaments, and joints to stimulate tissue regeneration, pain relief, and anti-inflammatory responses. With adjustable depth via a smart water system, gel-free control, and consistent energy output, it ensures high comfort, safety, and versatility across acute, subacute, and chronic conditions—outperforming electrohydraulic and piezoelectric systems in lifespan, maintenance, and focusing accuracy.

High-precision energy delivery for targeted therapy

Based on electromagnetic induction, the Infinium FOCUS™ generates shockwaves via a specialized coil and metallic membrane immersed in water. The pressure wave propagates through water to a parabolic reflector, focusing energy at precise depths up to 65 mm (with overall penetration to 100-120 mm). This creates a defined focal zone for biological effects like cell activation, improved blood flow, vasodilation, and angiogenesis—replacing damaged tissues without surface skin impact, ensuring safer, more comfortable treatments.

• •Deeper Penetration: Affects surrounding tissues beyond the 65 mm focal zone, with energy decaying gradually for effective deep therapy.
• •Gel-Free Depth Control: Adjust water levels in the applicator bladder to vary penetration—no gel pads needed, reducing costs and setup time.
• •Wide Frequency Range: 1-10 Hz for versatility; lower (1-4 Hz) for deep, high-energy chronic treatments; higher (8-10 Hz) for superficial or faster sessions.

Core Therapy Capabilities

• •Deep focused wave penetration up to 10-12 cm for effective tissue targeting
• •Focused energy delivery at precise locations for maximum therapeutic benefit
• •Clinical-grade strength up to 400 mJ with energy flux density 0.06–0.39 mJ/cm²

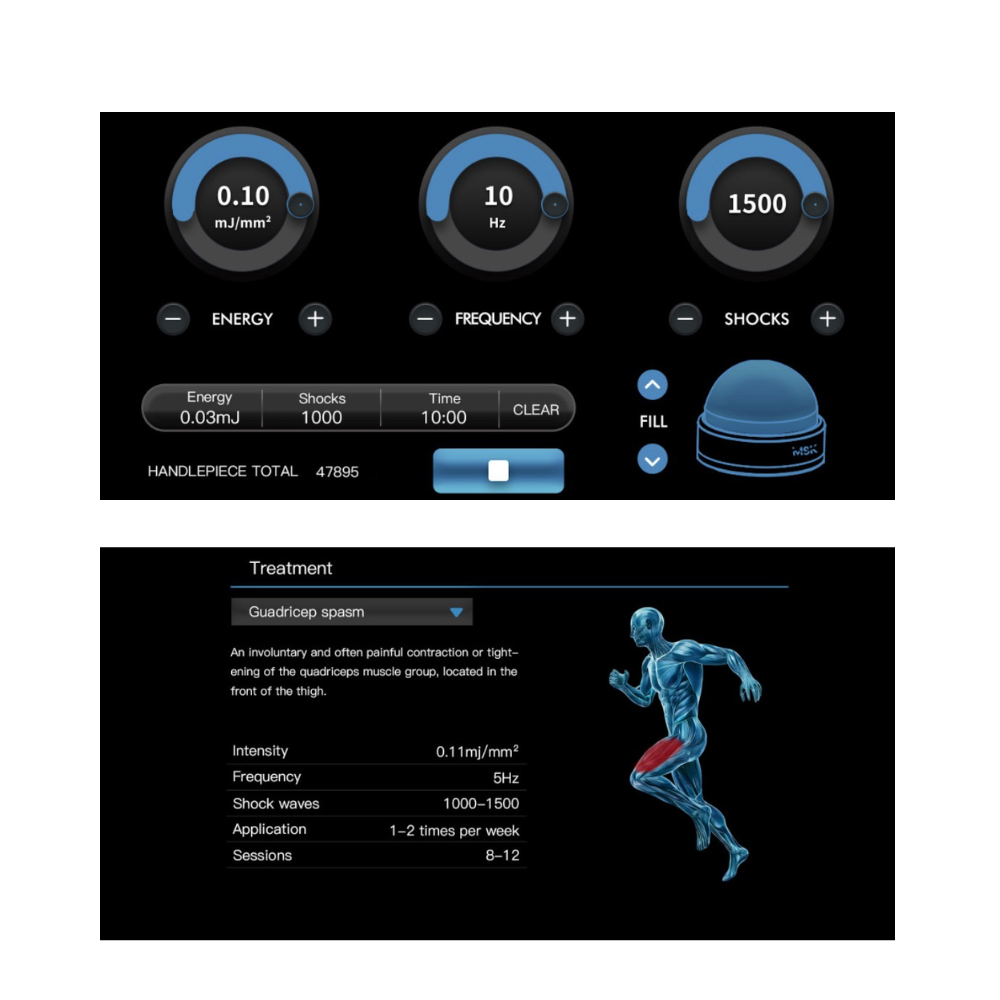

• •Easy-to-operate color touchscreen for adjustable parameters and personalized treatments
• •Pain-free, quick treatments with reduced discomfort and high safety

Versatile applications in sports medicine, orthopedics, and more

Advantages Over Other Systems

• •Longer Lifespan & Lower Maintenance: Fewer wear parts; applicator lasts 500,000+ shocks, pulse switch 1,000,000+—no frequent electrode replacements like electrohydraulic systems
• •Accurate Focus & Consistent Output: Sharper focusing via coil and membrane for reliable energy vs. variable delivery in electrohydraulic or limited depth in piezoelectric
• •High Comfort & Safety: Controlled energy reduces pain and tissue damage compared to high-peak pressures in electrohydraulic
• •Adjustable Depth & Versatility: Hybrid design suits superficial and deep tissues; faster results and scientific backing for broader indications
