OmniView™ Vital Signs Central Station Monitoring

OmniView™ Vital Signs Central Station Monitoring

The Omniview™ central station monitoring system archives full disclosure of all patient information and vital sign trends. The system displays real-time patients’ numeric vital signs along with waveforms. The patient data from the Omniview™ can be transferred to an EMR as a supplement to the patient’s file or integrated into a hospital information system.

Category
Share This Items :
Facebook
LinkedIn
WhatsApp

Description

Networked Centralized Patient Monitor Data

The Omniview™ central station monitoring system archives full disclosure of all patient information and vital sign trends. The system displays real-time patients’ numeric vital signs along with waveforms. The patient data from the Omniview™ can be transferred to an EMR as a supplement to the patient’s file or integrated into a hospital information system.

Simplicity In Connectivity

  • Expandable to manage up to 64 patient monitors
  • Displays Heart Rate, last BP reading, SpO2, Temp, EtCO2, and Respiration rate with waveforms
  • Real-time printing, review printing, case text printing with 120hr full disclosure review
  • Multiple audible/visual alarms with upper and lower limits
  • Supports HL7 communication protocol, which can be connected to HIS, CIS, and other systems
  • Special bed monitoring window with drug dose calculation

Future Proof Networking & Hardware Components

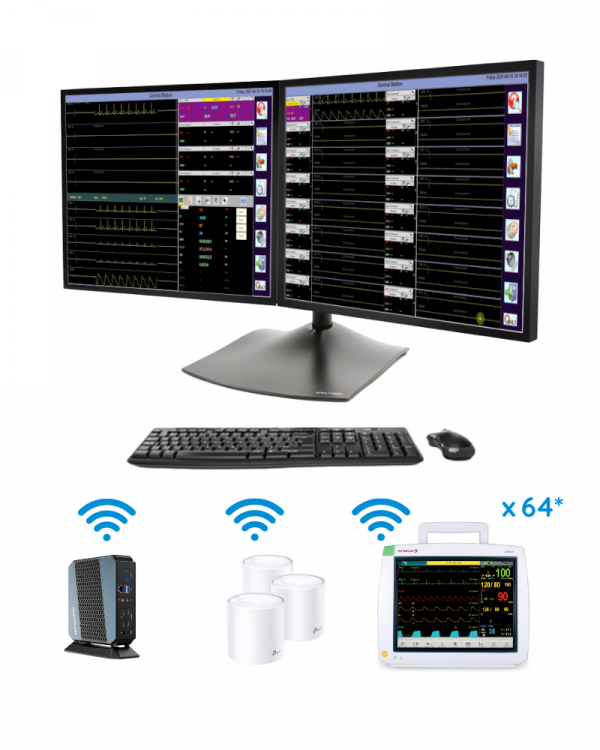

The OmniView™ includes a complete small form factor CPU that can be configured with up to 4 flat screen monitors, MOXA Card, interface box, and all necessary cables and connectors.

Key Features

  • Compatible with up to 64 Infinium Omni™Series patient monitors* (optional)
  • Nonproprietary components for expandability and lower maintenance
  • Supports up to 4 displays with 16 beds each
  • Both hard-wired (Ethernet or Serial port) and wireless connectivity are available
  • 20,000+ patient capacity
  • HL7 complaint data and networking
  • Customizable screen layouts
  • Real-time printing, review printing, case text printing with full disclosure review
  • Waveforms displayed: ECG, SpO2, Respiration, IBP, EtCO2
  • Special bed monitoring window with drug dose calculation
  • Audiovisual arrhythmia, and upper/ lower limit alarms
  • 150-hour real-time recall with multi-change disclosure
  • Ample storage and recall of alarm and arrhythmia events

Omni™ Series Compatibility

The OmniView™ Central Station is compatible with any combination of Omni™ Series monitors. This provides a reliable and flexible way to manage a wide range of vital signs throughout your facility.



Specifications

Wireless Networking ( Optional )

  • Modern mesh network for expanded coverage
  • Wifi 6 Dual Band covers up to 5800 sq ft
  • Can connect up to 64 wireless monitors
  • High speed throughput

Display Configuration

  • 23” or larger color display.
  • Combine up to 4 displays

Resolution: HD Quality

  • Advanced Ryzen CPU PRO
  • CPU: AMD Ryzen 9 5900HX with 8 Cores
  • GPU AMD Radeon Graphics
  • RAM: DDR4 8GB×2 Dual channel
  • Storage: Quiet 512GB SSD
  • Storage Expansion: 2x SATA HDD
  • Connectivity: Ethernet, Wi-Fi6, & Bluetooth 5.1
  • Video Output: Up to 4 external displays
  • Audio Output: 2x LINE OUT
  • Power DC 19V
  • Operating System: Windows 10 Professional

OmniView Software

  • Waveforms: ECG (I, II, III, aVR, aVL, aVF, V1-V6),PLETH, RESP, CO2, IBP, Multi-gas
  • Parameters: HR, ST, NIBP, IBP, SpO2, PR, RR, TEMP,EtCO2, Multi-gas
  • Indicator: Up to 64-waveform presentation 12.5mm/s, 25.0mm/s, 50.0mm/s user-adjustablesweep speed
  • Alarm sound: High and Low limits with audible and visual alarm
  • Record Type: 8 seconds real-time recording freeze waveform, trend, and alarm strip recording

Review & Reporting

  • Up 128 waveforms for up to 64 bedside monitors
  • Waveform presentation for each patient
  • 48 hours of trend display for all parameters
  • Multi-leads ECG waveform display with freeze function
  • 240 hours trend review for each bedside monitor
  • 720 items parameters alarm review per monitor
  • 720 NIBP measurements review
  • 72 hours of 64 channels full-disclosure waveforms

Key Features List

  • Compatible with up to 64 Infinium Omni™Series patient monitors* (optional)
  • Nonproprietary components for expandability and lower maintenance
  • Supports up to 4 displays with 16 beds each
  • Both hard-wired (Ethernet or Serial port) and wireless connectivity are available
  • 20,000+ patient capacity
  • HL7 complaint data and networking
  • Customizable screen layouts
  • Real-time printing, review printing, case text printing with full disclosure review
  • Waveforms displayed: ECG, SpO2, Respiration, IBP, EtCO2
  • Special bed monitoring window with drug dose calculation
  • Audiovisual arrhythmia, and upper/ lower-limit alarms
  • 150-hour real-time recall with multi-change disclosure
  • Ample storage and recall of alarm and arrhythmia events

OmniView™ Vital Signs Central Station Monitoring

Download

OmniView™ Vital Signs Central Station Monitoring Brochure
