Description
The Single Chamber Blanket Warming Cabinets with Data Logging are used to warm and maintain blankets at a consistent temperature. These cabinets are equipped with an integrated data logger that tracks the temperature inside the cabinet, ensuring that it is always at the optimal temperature. The largest cabinets can hold up to 80 blankets / 120 bottles and units are available in a variety of sizes. The construction is durable and easy to clean, and the cabinets come with a locking door to ensure the safety of the blankets inside. The data logging feature allows hospital staff to monitor and maintain the temperature of the blankets, ensuring patient comfort and safety.
The D-Series (Data Logging) provide independent, digitally controlled heating chambers that offer actual temperature and set point displays. Data is recorded every 30 minutes and stored for up to two years. Choose from a size that fits your needs, most units offer either glass or stainless door options.

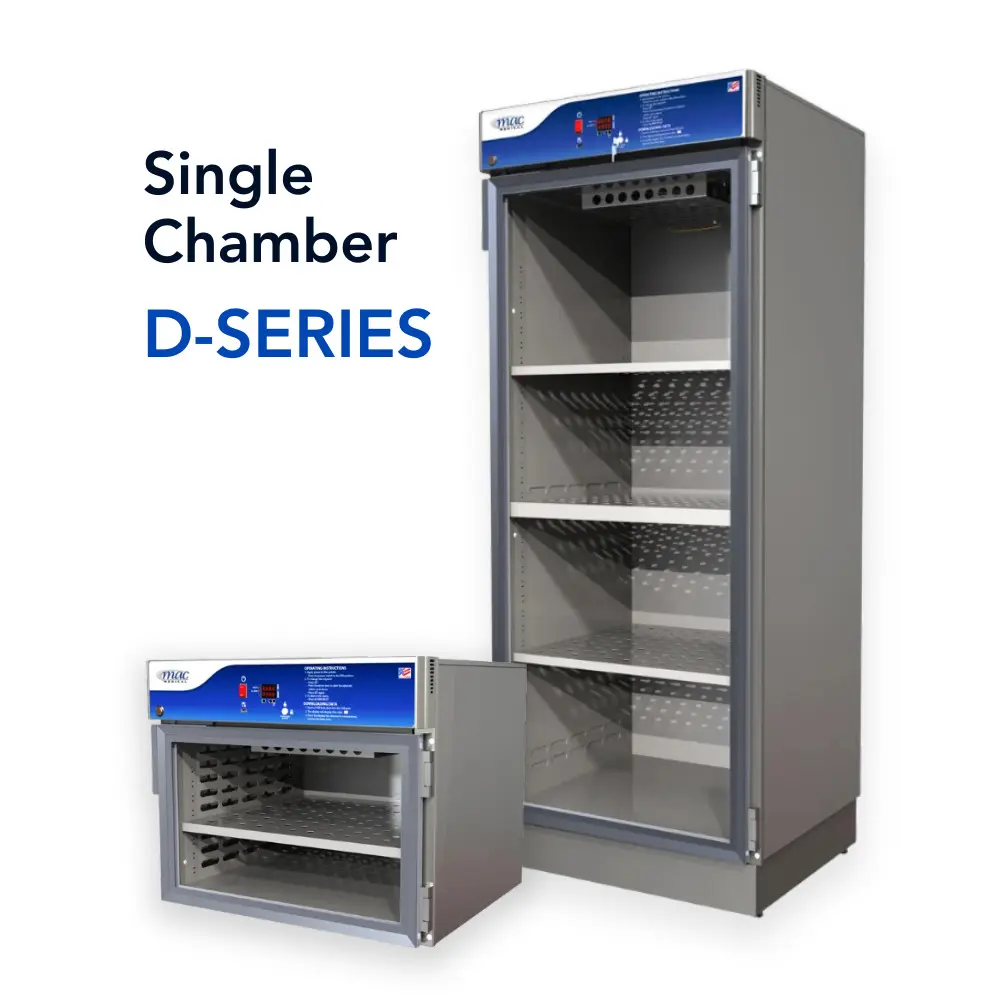

Single Chamber D-SERIES Size Options
- 17.25″D x 18″W x 22″H (1.3 Cubic Ft Inner Storage)
- 20.5″D x 24″W x 24.5″H (3 Cubic Ft Inner Storage)
- 26.5″D x 30″W x 24.5″H (5.27 Cubic Ft Inner Storage)
- 26.5″D x 30″W x 36″H (8.65 Cubic Ft Inner Storage)
- 20.5″D x 24″W x 74.5″H (12 Cubic Ft Inner Storage)
- 26.5″D x 30″W x 74.5″H (21.1 Cubic Ft Inner Storage)
D-Series Features
The D-Series (Data Logging) Warming Cabinets provide independent, digitally controlled heating chambers that offer actual temperature and set point displays. Data is recorded every 30 minutes and stored for up to two years. Choose from single, dual, or triple chamber units.
GENERAL D-SERIES FEATURES
- “Easy Log” integrated data logger with removable USB
- Keyed temperature lock out
- Keyed door lock for single & upper chamber units
- Adjustable feet
- Stainless steel doors
- Automatically records data every 30 minutes
- Internal storage up to 2 years
- Displays actual temperature and set points at all times
- Independent digitally controlled heating chambers
- Rapid warm time (2-6 hours depending on load)
- Push button digital operation
- Large digital display(s)
- Fully insulated to provide uniform heatingAudible & visual over-temp alarm
OPTIONAL FEATURES
- CuVerro® antimicrobial copper alloy handle
- Full view glass door
- Left hand door hinge
- 220/240V power supply
- Celsius
- Two (2) recessed unit options
- Seismic braces
- Pass through chamber
- Electronic keypad lock
- Sloping top
- Keyed door lock for intermediate & lower chamber units
Optional Accessories
Accessories available for tabletop models:
(sold separately)
- Mobile Stand
- Mobile Cabinet Stand
- Roll Out Basket
Accessories available for standing models:
(sold separately)
- Mobile Base
- Roll Out Basket
Size and Specifications
Model # SWC151822
Overall Size
– 17.25″D x 18″W x 22″H
– (438.15mm x 457.2mm x 558.8mm)
– Optional Adjustable Shelf
Chamber I.D.
– 14″D x 14″W x 11.63″H
– (355.6mm x 355.6mm x 259.4mm)
– 1.30 Cubic Feet Storage
– Temperature Range 90°-160° F (Tolerance +/- 1° F)
Electrical
– 120V, 2.08 Amp, 50/60 Hz
.25 kWh (Avg.), 853 BTU/hr (Avg.)
Model # SWC182424
Overall Size
20.5″D x 24″W x 24.5″H – (520.7mm x 609.6mm x 622.3mm)
Optional Adjustable Shelf
Chamber I.D.
17″D x 20″W x 15.25″H – (431.8mm x 508mm x 387.3mm)
3 Cubic Feet Storage
Temperature Range 90°-160° F (Tolerance +/- 1° F)
Electrical
– 120V, 2.9 Amp, 50/60 Hz
– .23 kWh (Avg.), 785 BTU/hr (Avg.)
Model # SWC243024
Overall Size
26.5″D x 30″W x 24.5″H – (673.1mm x 762mm x 622.3mm)
1 Adjustable Shelf
Chamber I.D.
23″D x 26″W x 15.25″H – (584.2mm x 660.4mm x 387.3mm)
5.27 Cubic Feet Storage
Temperature Range 90°-160° F – (Tolerance +/- 1° F)
Electrical
120V, 6.3 Amp, 50/60 Hz
.45 kWh (Avg.), 1535 BTU/hr (Avg.)
Model # SWC243036
Overall Size
26.5″D x 30″W x 36.5″H – (673.1mm x 762mm x 927mm)
2 Adjustable Shelves
Chamber I.D.
23″D x 26″W x 25″H – (584.2mm x 660.4mm x 635mm)
8.65 Cubic Feet Storage
Temperature Range 90°-160° F (Tolerance +/- 2° F)
Electrical
120V, 6.3 Amp, 50/60 Hz
.45 kWh (Avg.), 1535 BTU/hr (Avg.)
Model # SWC182474
Overall Size
20.5″D x 24″W x 75″H – (520.7mm x 609.6mm x 1905mm)
2 Adjustable Shelves, 1 Fixed Shelf
Chamber I.D.
17″D x 20″W x 61″H – (431.8mm x 508mm x 1549mm)
12 Cubic Feet Storage
Temperature Range 90°-160° F (Tolerance +/- 3° F)
Electrical
120V, 6.5 Amp, 50/60 Hz
.47 kWh (Avg.), 1604 BTU/hr (Avg.)
Model # SWC243074
Overall Size
26.5″D x 30″W x 74.5″H – (673.1mm x 762mm x 1892mm)
2 Adjustable Shelves, 1 Fixed Shelf
Chamber I.D.
23″D x 26″W x 61″H – (584.2mm x 660.4mm x 1549mm)
21.1 Cubic Feet Storage
Temperature Range 90°-160° F (Tolerance +/- 3° F)
Electrical
120V, 6.5 Amp, 50/60 Hz
.47 kWh (Avg.), 1604 BTU/hr (Avg.)
