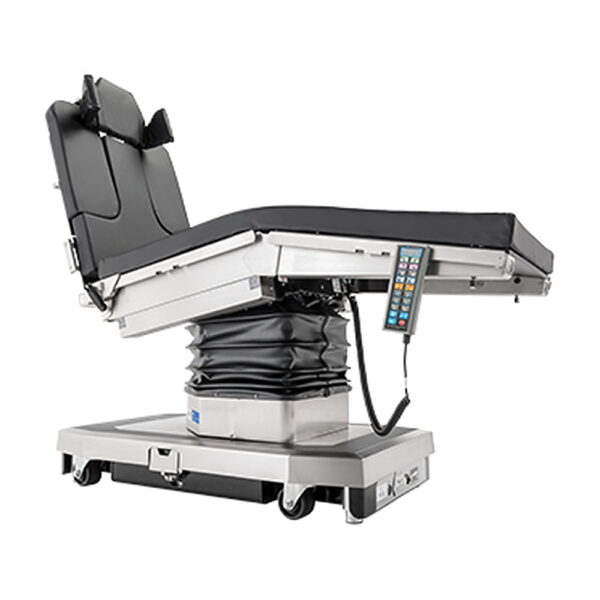

Refurbished Steris 5095 general surgical table: a low-height, high-capacity electrohydraulic OR platform with 18 inches of tabletop slide for C-arm access across general, MIS, orthopedic, and imaging-heavy cases.
1,200 lb
Patient support (lift)
22.8–42.5 in
Height range
18 in
Tabletop slide
Refurbished
Inspected & tested
Overview
The Steris 5095 is a general-purpose electrohydraulic surgical table built for modern OR and ASC workflows that need both a low working height and strong patient support. At a low height of 22.8 inches and a high of 42.5 inches, the platform supports MIS, robotic-adjacent, and bariatric positioning without giving up the elevation orthopedic and cardiac teams expect.
Eighteen inches of total tabletop slide (9 inches toward the head and 9 inches toward the feet) expands the imaging window so C-arm access is available without time-consuming patient reorientation. A narrow column, radiolucent top, and powered kidney elevator help surgical teams position for cardiothoracic, orthopedic, neurosurgical, and general procedures on one familiar Steris platform.
This listing is a Refurbished Steris 5095: professionally refurbished, inspected, and tested for clinical use. Pair with standard US-rail Surgical Table Accessories for arm boards, clamps, stirrups, and positioning pads.
The Steris 5095 is a general-purpose electrohydraulic surgical table built for modern OR and ASC workflows that need both a low working height and strong patient support. At a low height of 22.8 inches and a high of 42.5 inches, the platform supports MIS, robotic-adjacent, and bariatric positioning without giving up the elevation orthopedic and cardiac teams expect.
Eighteen inches of total tabletop slide (9 inches toward the head and 9 inches toward the feet) expands the imaging window so C-arm access is available without time-consuming patient reorientation. A narrow column, radiolucent top, and powered kidney elevator help surgical teams position for cardiothoracic, orthopedic, neurosurgical, and general procedures on one familiar Steris platform.
This listing is a Refurbished Steris 5095: professionally refurbished, inspected, and tested for clinical use. Pair with standard US-rail Surgical Table Accessories for arm boards, clamps, stirrups, and positioning pads.
Key Features
Low height with high weight support
Height range 22.8 to 42.5 inches with up to 1,200 lb patient support for raise/lower when centered on the column, suited to MIS, bariatric, and mixed ASC caseloads.
18-inch tabletop slide for imaging
Nine inches of slide toward the head and nine toward the feet create a large imaging footprint for C-arm and fluoroscopy without reversing the patient.
Powered kidney elevator and full articulation
Powered kidney lift to 4 inches plus Trendelenburg/reverse 30°, lateral tilt 20°, and flex/reflex positioning for abdominal and specialty setups.
Removable leg section and perineal access
Removable leg section (0° to −105°) and perineal cut-out support gyn, uro, and cysto-style access when the case requires it.
Familiar Steris hand-control workflow
Electrohydraulic adjustments with manual override backup keep positioning familiar for teams already running Steris tables.
Available options
- Standard US side-rail Surgical Table Accessories (arm boards, clamps, stirrups, pads)
- Optional featherweight or specialty leg sections when configured for the case
- Tabletop extenders for wider surface when specified
- Replacement pad sets and positioning gels from the Surgical Table Accessories category
Clinical Applications
Use the refurbished Steris 5095 where a general OR or ASC needs one electrohydraulic table for mixed specialties. OEM-supported positioning language covers general surgery, MIS and robotic-adjacent low-height work, bariatric support within published capacities, and imaging-forward cardiothoracic, orthopedic, and neurosurgical access via slide and radiolucent top. Confirm case mix, pad set, and accessory rail needs for your facility.
Specs
| Table length | 81 in (2057 mm) |
|---|---|
| Table width | 20 in (508 mm); 28 in with extenders |
| Height range | 22.8–42.5 in (581–1080 mm) |
| Tabletop slide | 9 in head + 9 in foot (18 in total) |
| Patient support (lift) | 1,200 lb (544 kg), centered |
| Full articulation | 900 lb (409 kg), centered |
| Articulation including slide | 600 lb (272 kg) |
| Trendelenburg / reverse | 30° / 30° |
| Lateral tilt | 20° / 20° |
| Head section | +90° / −90° |
| Back section | +80° / −40° |
| Leg section | 0° / −105° (removable) |
| Flex / reflex | 140° / 100° |
| Kidney elevator | 4 in (110 mm) powered |
| Manual override | Yes |
| Perineal cut-out | Yes |
| Approx. shipping weight | 820–825 lb |
| Condition | Professionally refurbished, inspected, and tested |
