Description
Product Summary

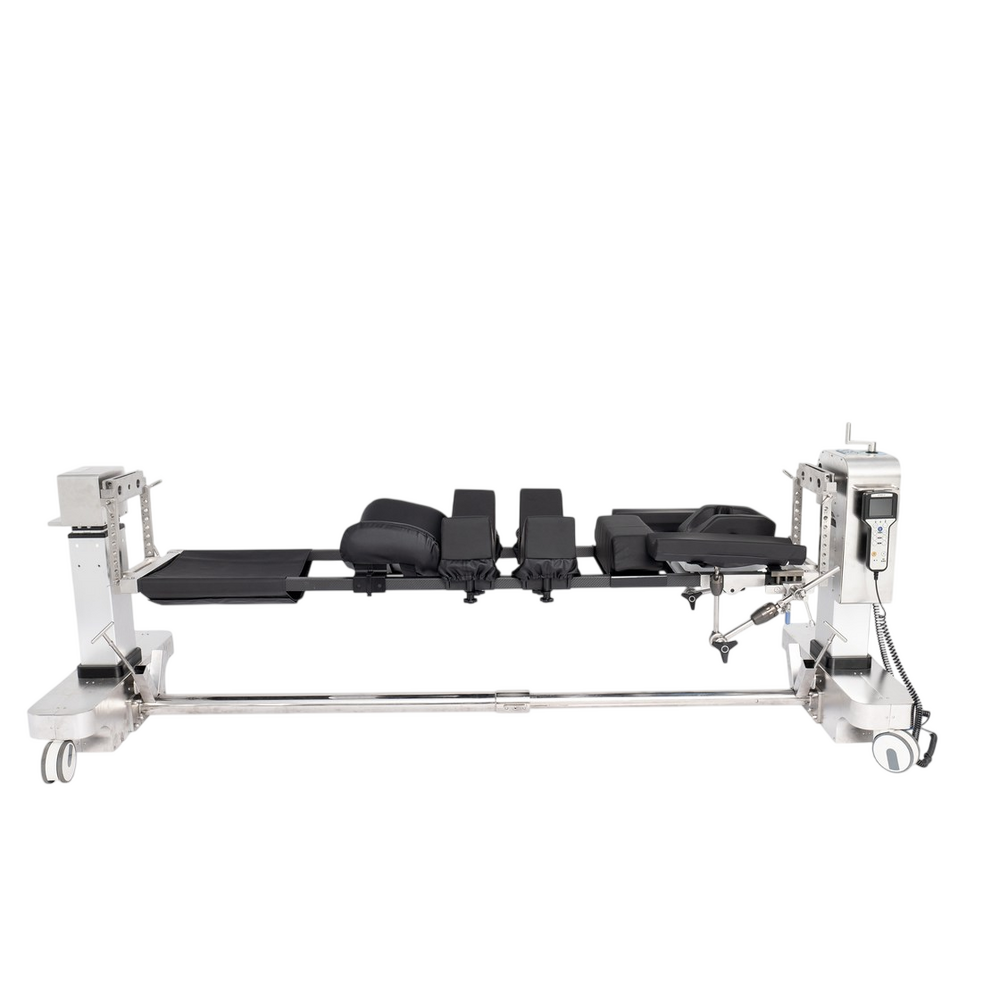

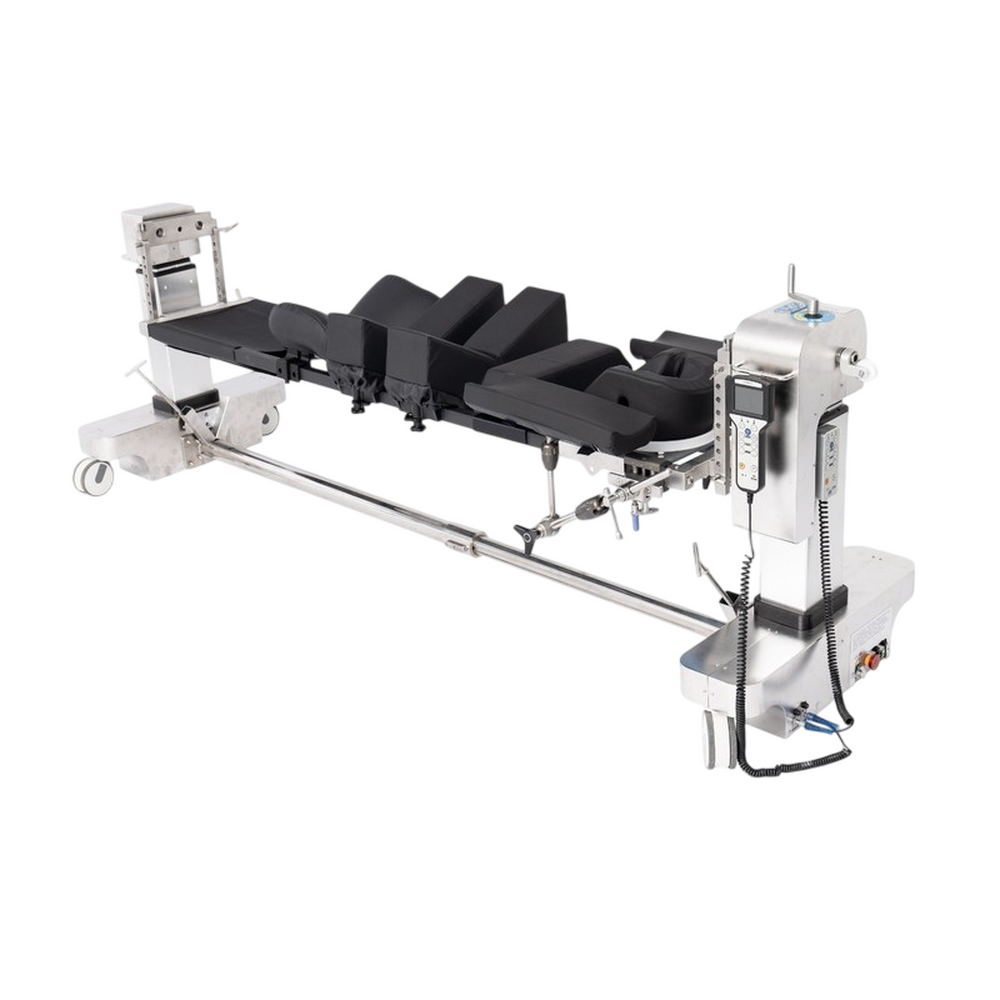

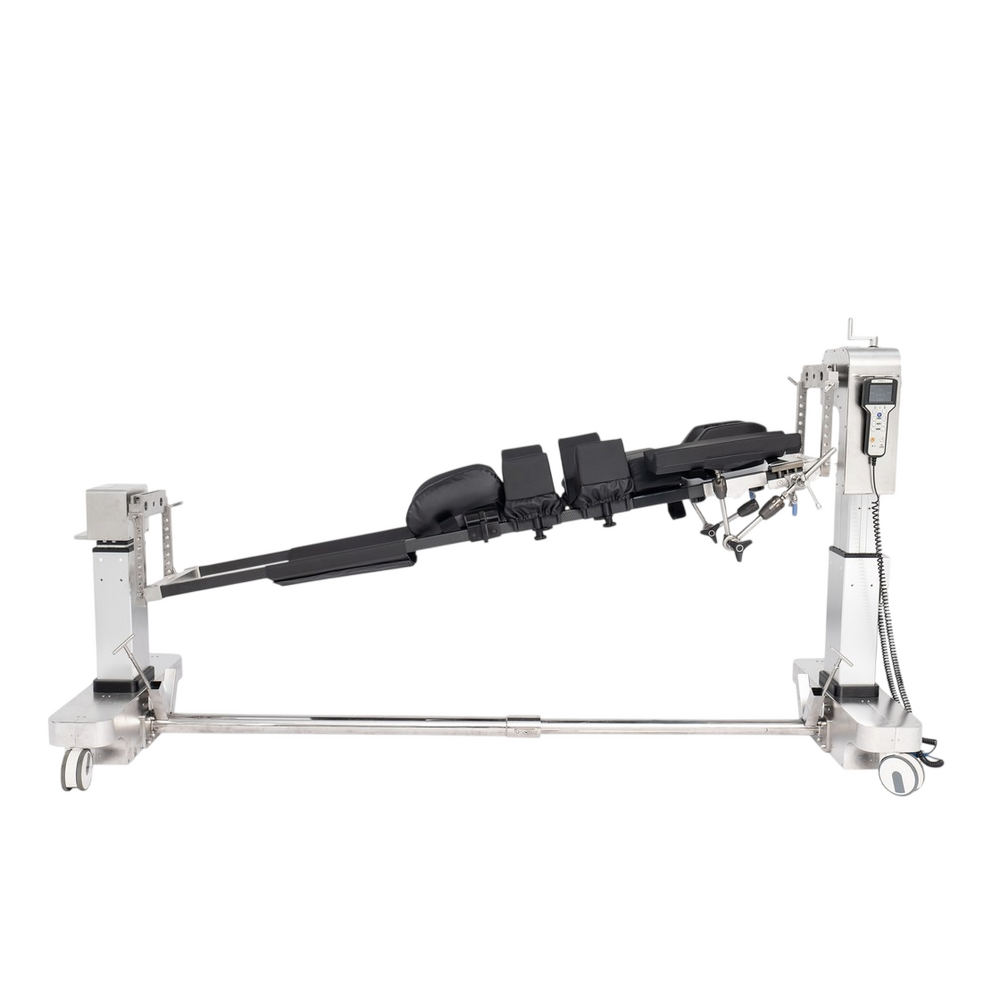

The All-Carbon-Fiber Multi-Functional Spine Operating Table (Jackson Table) is a premium surgical platform engineered for complex spinal, trauma, neurosurgical, orthopedic, and pelvic procedures. Built on a double-column frame with a full carbon-fiber bed surface, it delivers unrestricted fluoroscopic imaging — compatible with C-arm, G-arm, and O-arm systems — with no dead angle or shadow across the entire operative field.
The tabletop rotates a full 360 degrees manually, enabling seamless transitions between prone, lateral, supine, and lower-limb-traction positions without repositioning the patient — ideal for combined anterior and posterior surgical approaches in a single session. With a rated load capacity of 270 kg (595 lb) and a platform size of 2720 × 500 mm (107.1 × 19.7 in), this table accommodates a broad patient population across multiple surgical disciplines.
Key Features
All-Carbon-Fiber Construction
Full carbon-fiber bed surface and frame provide exceptional radiolucency with zero imaging shadow or dead angle.
360° Manual Tabletop Rotation
Tabletop rotates a full 360 degrees to support combined anterior and posterior procedures without patient repositioning.
Double-Column Design
Dual-column base maximizes under-table clearance, giving C-arm, G-arm, and O-arm systems unobstructed access along the full length of the patient.
Multi-Position Flexibility
Supports prone, lateral, supine, and lower-limb-traction positions to accommodate a broad range of surgical disciplines.
Full Imaging Access — No Dead Angle
Carbon-fiber radiolucency combined with the open double-column base eliminates imaging shadows across the entire operative field.
Multi-Specialty Platform
Designed for general, trauma, neurosurgical, orthopedic, and pelvic surgery on a single unified table system.
Feature List
- All-carbon-fiber bed surface and structural components
- Double-column base design for maximum under-table clearance
- Full 360-degree manual tabletop rotation
- Compatible with C-arm, G-arm, and O-arm fluoroscopy systems
- Zero imaging dead angle or shadow across the full operative field
- Left and right tilt angle of ±20°
- High-density foam padding for patient comfort and support
- Rated load capacity of 270 kg (595 lb)
- Platform size: 2720 × 500 mm (107.1 × 19.7 in)
- Prone positioning support for spinal and neurosurgical procedures
- Lateral positioning support for orthopedic and pelvic surgery
- Supine positioning for general and trauma surgery
- Lower-limb-traction positioning capability
- Combined anterior and posterior approach capability in a single session
- Multi-functional platform spanning general, trauma, neurosurgical, orthopedic, and pelvic surgery
- CE, ISO 13485, FDA, and SFDA certified
Medical Applications
Spine Surgery
Optimized prone and lateral positioning with full-length radiolucent access for anterior, posterior, and combined spinal procedures.
Neurosurgery
Supports the precise positioning and unobstructed intraoperative imaging required for cranial and spinal neurosurgical cases.
Orthopedic Surgery
Lower-limb-traction and lateral positioning capabilities accommodate hip, pelvis, and extremity orthopedic procedures.
Trauma & General Surgery
Supine and multi-position flexibility supports emergency trauma cases and a wide range of general surgical procedures.
